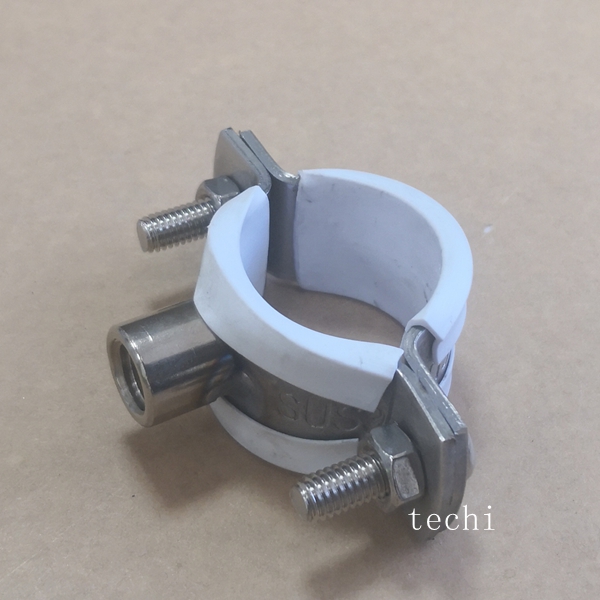

Rubber Lined Heavy Duty Pipe Clamp 30mm
A pipe support is a structural component used to support, secure, and guide piping systems, ensuring stability under loads (e.g., weight, thermal expansion, vibration).
Rubber Lined Heavy Duty Pipe Clamp 30mm material:
304 stainless steel hanger clamp adopts high-quality 18-8 austenitic stainless steel (18% Cr, 8% Ni). It features excellent corrosion resistance, good ductility and toughness, with reliable weldability and machinability. Stable in performance, long in service life, it’s ideal for construction, plumbing, electrical engineering and other industrial/civil uses.
Rubber Lined Heavy Duty Pipe Clamp 30mm dimension and size:
| CODE | SIZE | RANGE(φD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M*L) | NUT SIZE(G) | PCS/CTN |
| 11A0018 | 3/8″ | 15-19 | 1.5*20 | M6*20 | M8+10 | 200 |
| 11A0022 | 1/2″ | 20-25 | 1.5*20 | M6*20 | M8+10 | 200 |
| 11A0028 | 3/4″ | 26-30 | 1.5*20 | M6*20 | M8+10 | 160 |
| 11A0035 | 1″ | 32-36 | 1.5*20 | M6*20 | M8+10 | 120 |
| 11A0040 | 1-1/4″ | 38-43 | 1.5*20 | M6*20 | M8+10 | 120 |
| 11A0048 | 1-1/2″ | 47-51 | 1.5*20 | M6*20 | M8+10 | 180 |
| 11A0054 | 一 | 53-58 | 1.5*20 | M6*20 | M8+10 | 175 |
| 11A0060 | 2″ | 60-64 | 1.5*20 | M6*20 | M8+10 | 170 |
| 11A0070 | 一 | 68-72 | 1.5*20 | M6*20 | M8+10 | 120 |
| 11A0075 | 2-1/2″ | 75-80 | 1.8*20 | M6*20 | M8+10 | 120 |
| 11A0083 | 一 | 81-86 | 1.8*20 | M6*20 | M8+10 | 100 |
| 11A0090 | 3″ | 87-92 | 1.8*20 | M6*20 | M8+10 | 100 |
| 11A0100 | 2003/1/2 | 99-105 | 1.8*20 | M6*20 | M8+10 | 100 |
| 11A0110 | 110 | 107-112 | 2.0*20 | M6*20 | M8+10 | 60 |
| 11A0115 | 4″ | 113-118 | 2.0*20 | M6*20 | M8+10 | 60 |
| 11A0125 | 一 | 125-130 | 2.0*20 | M6*20 | M8+10 | 50 |
| 11A0140 | 5″ | 138-142 | 2.0*20 | M6*20 | M8+10 | 40 |
| 11A0160 | 6″ | 159-166 | 2.0*20 | M6*20 | M8+10 | 30 |
| 11A0200 | 198-207 | 2.0*20 | M6*20 | M8+10 | 15 | |
| 11A0220 | 8″ | 215-220 | 2.0*20 | M6*20 | M8+10 | 15 |

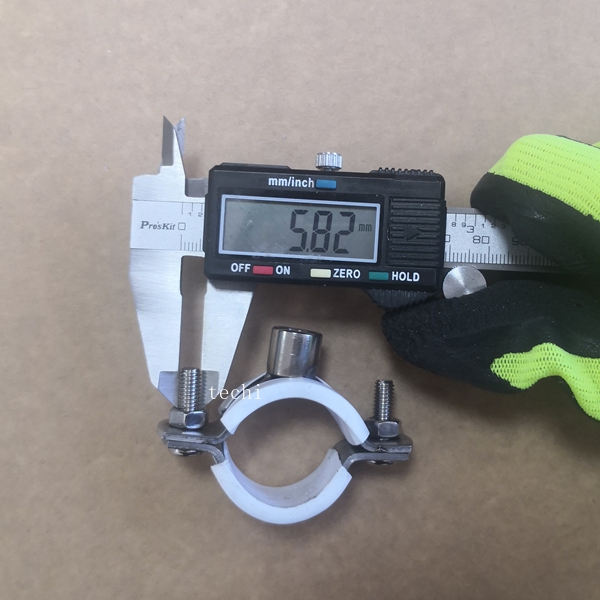

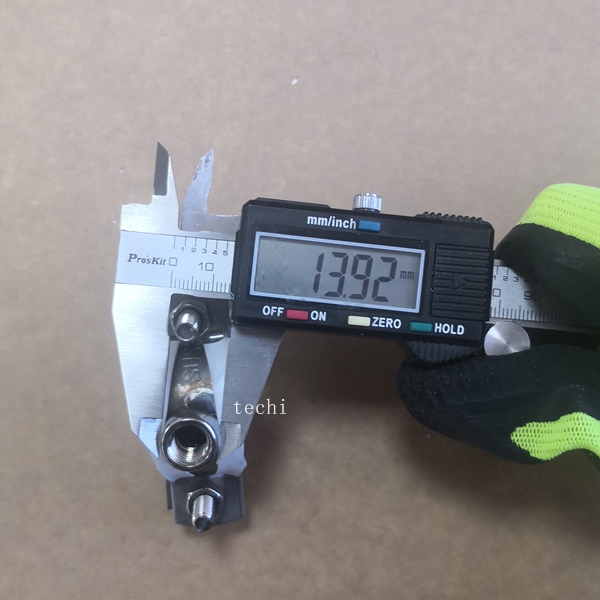

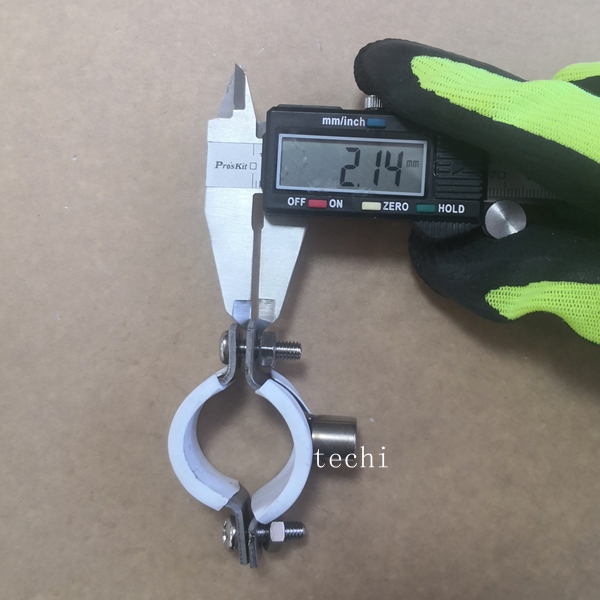

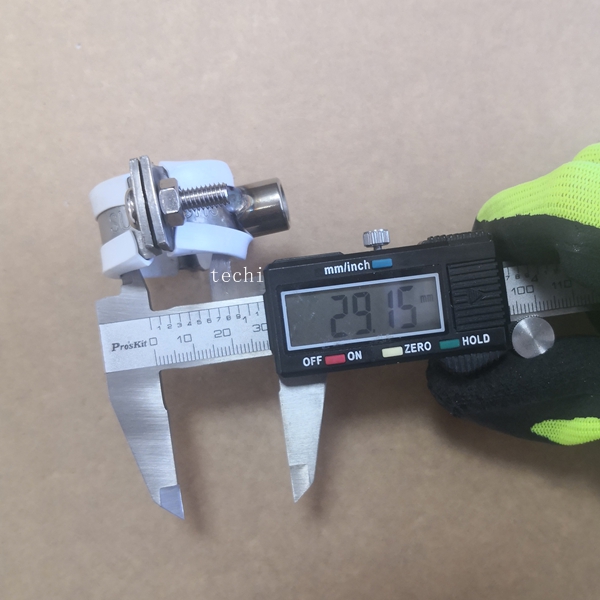

Adjustable Pipe Holder Stainless Steel Support Bracket Clip with Rubber Pad 30MM measurement and dimension :
Contact our sales for Rubber Lined Heavy Duty Pipe Clamp 30mm factory price and clamp catalogue:
