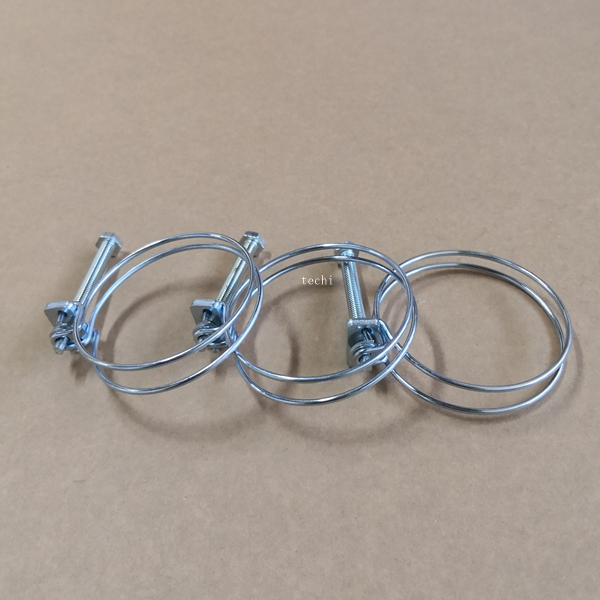

Constant Tension Double Wire Spring Hose Clamp 66mm
The Constant Tension Double Wire Spring Hose Clamp 66mm is a high-performance fastening solution engineered for secure, leak-proof hose connections in dynamic environments. Combining a dual-wire construction with an innovative constant tension mechanism, this clamp delivers consistent pressure compensation for temperature fluctuations, pressure changes, and vibrations, ensuring long-lasting reliability across industrial, automotive, marine, and household applications.
Constant Tension Double Wire Spring Hose Clamp 66mm Features:
Strong Structure
The doble-wire hose clamp can form a relatively complete cirde after sealing, and has good sealing performance with strong bolt and without burr edge treatment
Superior Ability
This damp is not only easy and fast to install, but also uniform dlamping, it can follow the hose deformation and natural shrinkage to achieve the efect of clamping
Constant Tension Double Wire Spring Hose Clamp 66mm dimension:
| No. | Size | Regulating range | The Size Of The Screw | Wire Diameter |
| 1 | 14 | 11-14 | M5*30 | 1.2 |
| 2 | 16 | 12-16 | M5*30 | 1.2 |
| 3 | 19 | 15-19 | M5*30 | 1.4 |
| 4 | 22 | 18-22 | M5*30 | 1.4 |
| 5 | 25 | 20-25 | M5*30 | 1.5 |
| 6 | 28 | 24-29 | M6*40 | 1.5 |
| 7 | 32 | 28-32 | M6*40 | 1.6 |
| 8 | 38 | 34-38 | M6*40 | 1.6 |
| 9 | 44 | 38-44 | M6*40 | 2 |
| 10 | 51 | 40-51 | M6*50 | 2 |
| 11 | 57 | 50-57 | M6*50 | 2 |
| 12 | 60 | 55-60 | M6*60 | 2 |
| 13 | 64 | 60-64 | M6*60 | 2 |
| 14 | 70 | 65-70 | M6*70 | 2 |
| 15 | 89 | 80-89 | M6*70 | 2.2 |
| 16 | 92 | 85-92 | M6*70 | 2.2 |
| 17 | 100 | 90-100 | M6*70 | 2.5 |
| 18 | 110 | 100-110 | M6*80 | 2.5 |
| 19 | 120 | 110-120 | M6*80 | 2.5 |

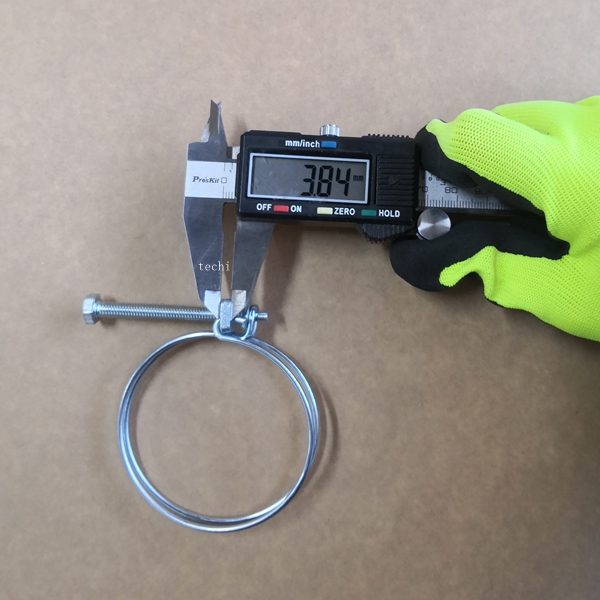

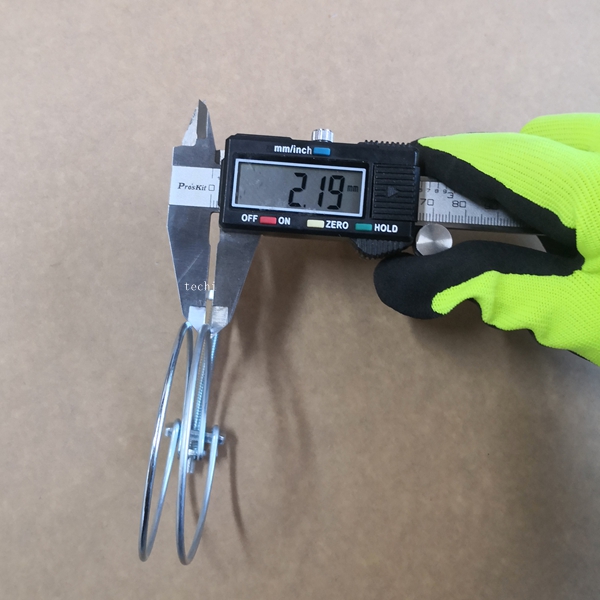

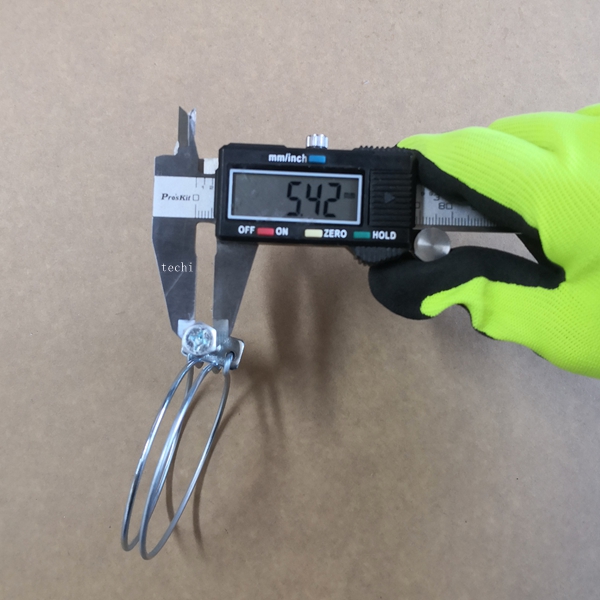

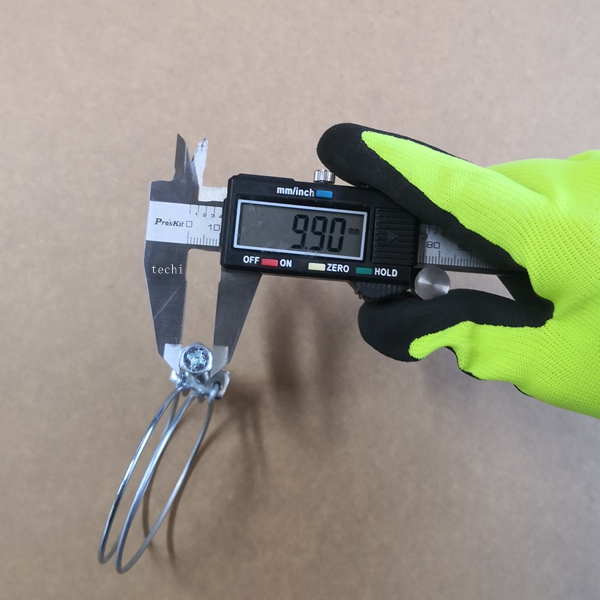

Constant Tension Double Wire Spring Hose Clamp 66mm measurement and dimension :
