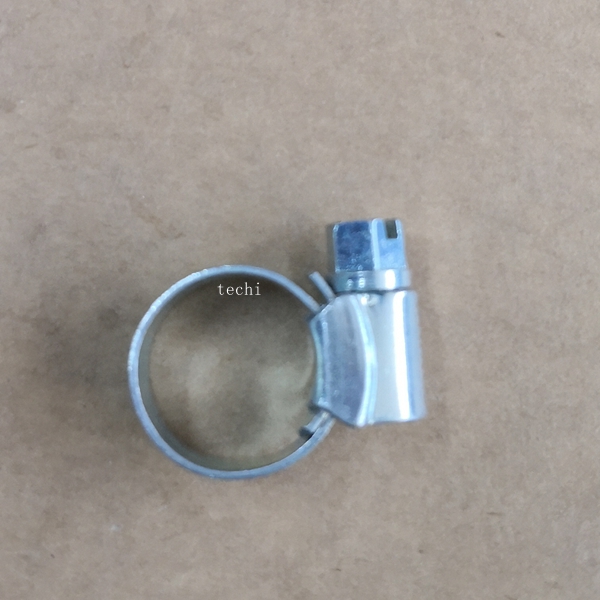

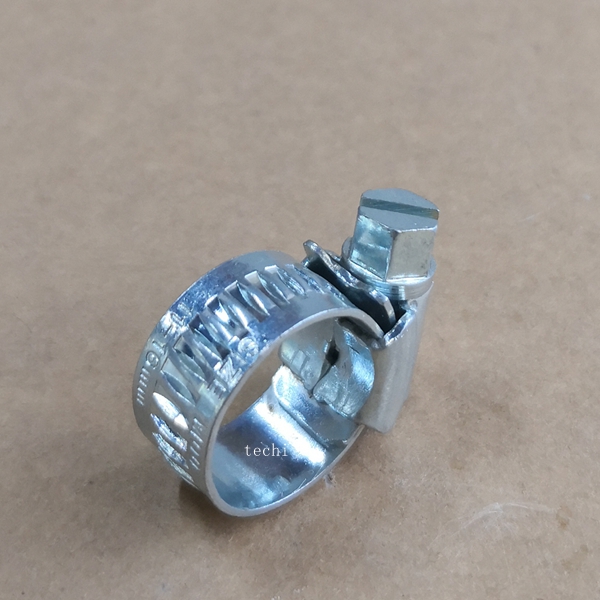

Engine Parts Hose Clamp 11-16mm
The W4 SS germay type hose clamp, is also know as stainless steel worm drive hose clips, or stainless steel worm clamps, refers to a specific design standard that originated in Germany and is widely used across Europe. These clamps are engineered to meet DIN3017 standards, ensuring high quality and reliability for industrial applications.
Engine Parts Hose Clamp 11-16mm material:
W4 – All parts stainless steel 201/301/304. (screw, hosing and band)
Stainless Steel 201: It offers higher hardness properties, making it well-suited for applications in dry environments.
Stainless Steel 304: It exhibits excellent corrosion and acid resistance, making it ideal for outdoor or high-humidity applications. With its higher chromium (18-20%) and nickel (8-10.5%) content, 304 stainless steel maintains strong rust resistance even in harsh environments.
Engine Parts Hose Clamp 11-16mm dimension and size:
| Product name | Size(inch) | Size(mm) | Bandwidth(mm) | W2 | W4 |
| Hose Clamp | 1/2″ | 6-12mm | 9mm | Galvanized screw Stainless steel for other parts |
All stainless steel |
| Hose Clamp | 5/8″ | 10-16mm | 9mm | ||
| Hose Clamp | 3/4″ | 11-20mm | 9mm | ||
| Hose Clamp | 7/8″ | 13-23mm | 9mm | ||
| Hose Clamp | 1″ | 16-25mm | 9mm/12mm | ||
| Hose Clamp | 1-1/16″ | 16-27mm | 9mm/12mm | ||
| Hose Clamp | 1-1/4″ | 18-32mm | 9mm/12mm | ||
| Hose Clamp | 1-1/2″ | 25-40mm | 9mm/12mm | ||
| Hose Clamp | 1-3/4″ | 30-45mm | 9mm/12mm | ||
| Hose Clamp | 2″ | 32-50mm | 9mm/12mm | ||
| Hose Clamp | 2-1/2″ | 40-60mm | 9mm/12mm | ||
| Hose Clamp | 2-3/4″ | 50-70mm | 9mm/12mm | ||
| Hose Clamp | 3-1/4″ | 60-80mm | 9mm/12mm | ||
| Hose Clamp | 3-1/2″ | 70-90mm | 9mm/12mm | ||
| Hose Clamp | 4″ | 80-100mm | 9mm/12mm | ||
| Hose Clamp | 4-1/2″ | 90-110mm | 9mm/12mm | ||
| Hose Clamp | 4-3/4″ | 100-120mm | 9mm/12mm | ||
| Hose Clamp | 5-1/4″ | 110-130mm | 9mm/12mm | ||
| Hose Clamp | 5-1/2″ | 120-140mm | 9mm/12mm | ||
| Hose Clamp | 6″ | 130-150mm | 9mm/12mm | ||
| Hose Clamp | 6-1/4″ | 140-160mm | 9mm/12mm | ||
| Hose Clamp | 6-3/4″ | 150-170mm | 9mm/12mm | ||
| Hose Clamp | 7″ | 160-180mm | 9mm/12mm | ||
| Hose Clamp | 7-1/2″ | 170-190mm | 9mm/12mm | ||
| Hose Clamp | 8″ | 180-200mm | 9mm/12mm | ||
| Hose Clamp | 8-1/2″ | 190-210mm | 9mm/12mm | ||
| Hose Clamp | 9″ | 200-220mm | 9mm/12mm | ||
| Hose Clamp | 9-1/2″ | 210-230mm | 9mm/12mm | ||
| Hose Clamp | 10″ | 220-240mm | 9mm/12mm | ||
| Hose Clamp | 10-1/2″ | 230-250mm | 9mm/12mm | ||
| Hose Clamp | 11″ | 240-260mm | 9mm/12mm | ||
| Hose Clamp | 11-1/2″ | 250-270mm | 9mm/12mm | ||
| Hose Clamp | 12″ | 260-280mm | 9mm/12mm | ||
| Hose Clamp | 12-1/2″ | 270-290mm | 9mm/12mm | ||
| Hose Clamp | 13″ | 280-300mm | 9mm/12mm |

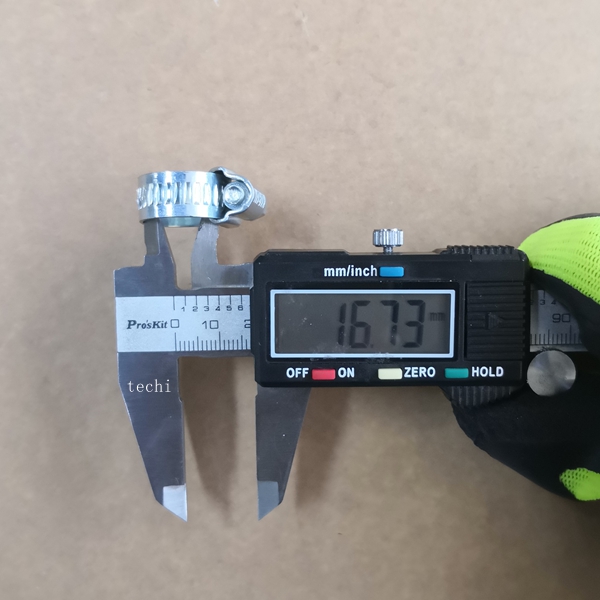

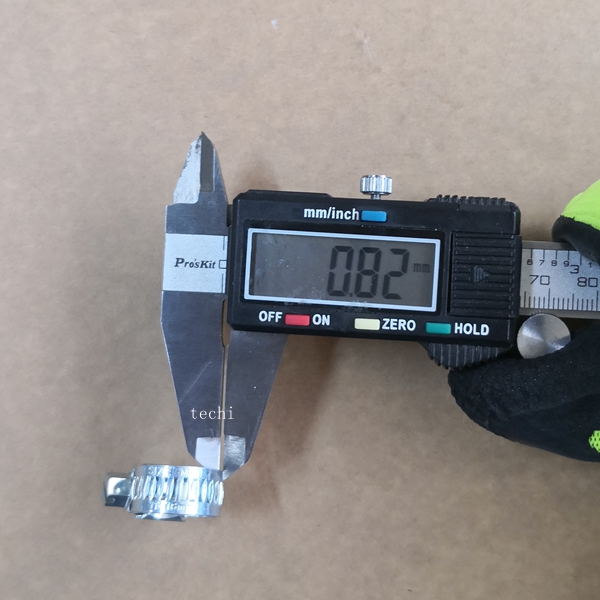

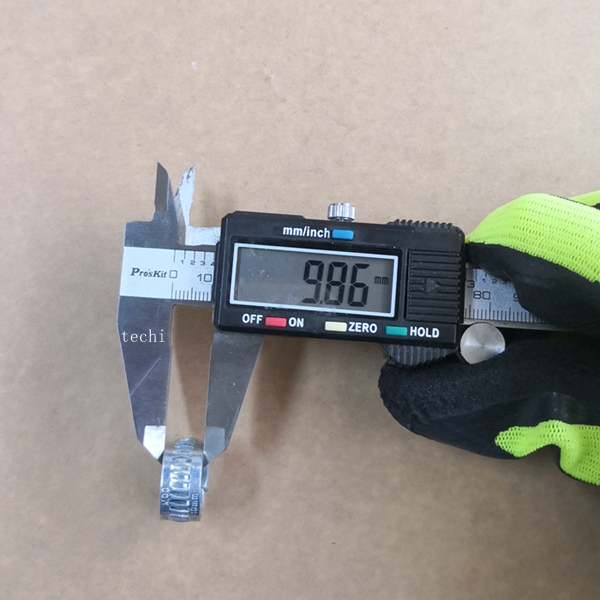

Engine Parts Hose Clamp 11-16mm measurement and dimension :
