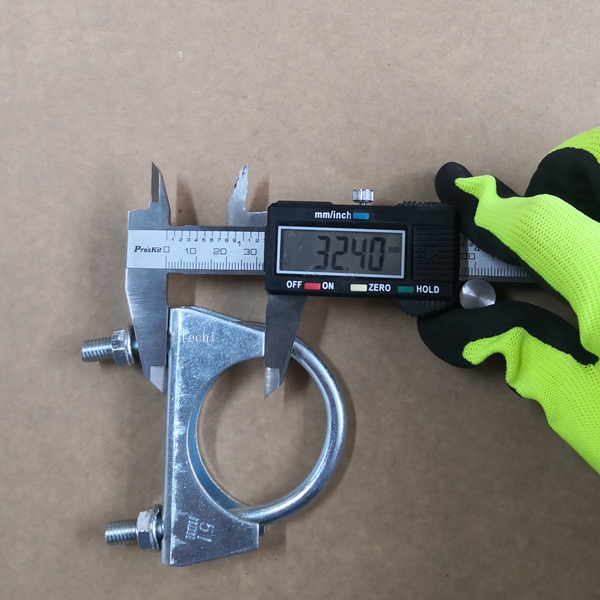

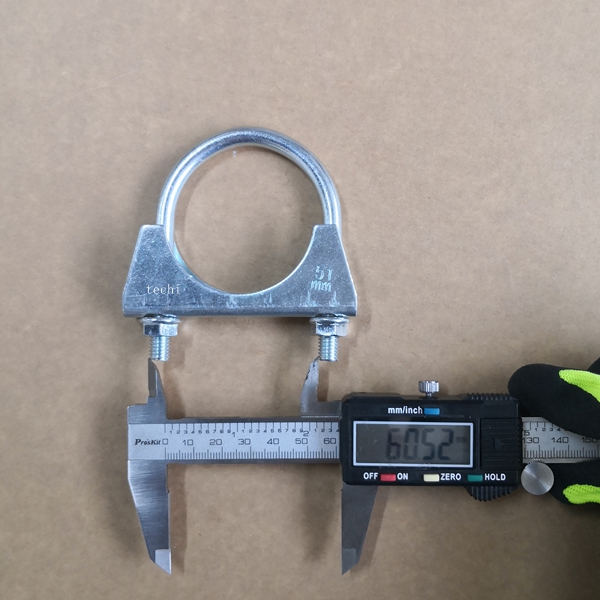

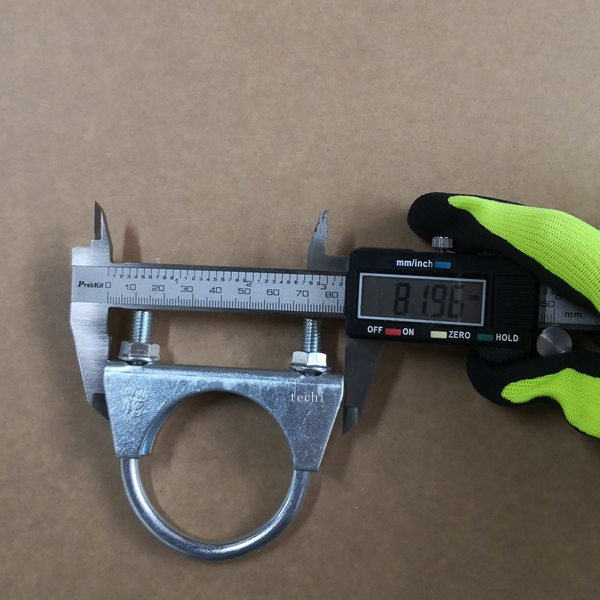

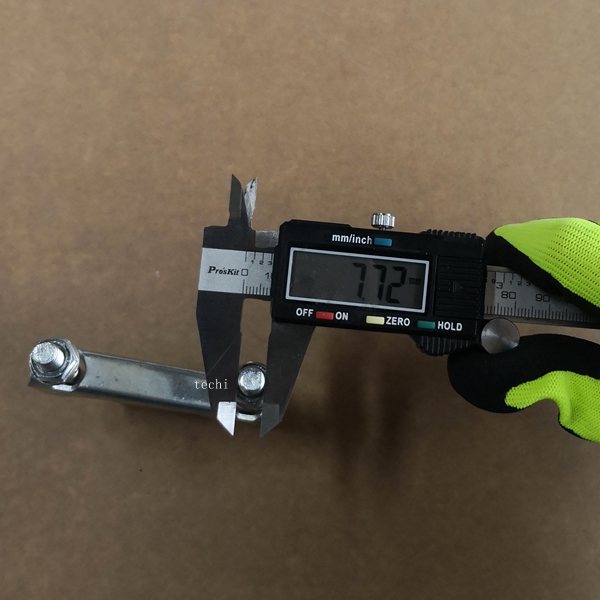

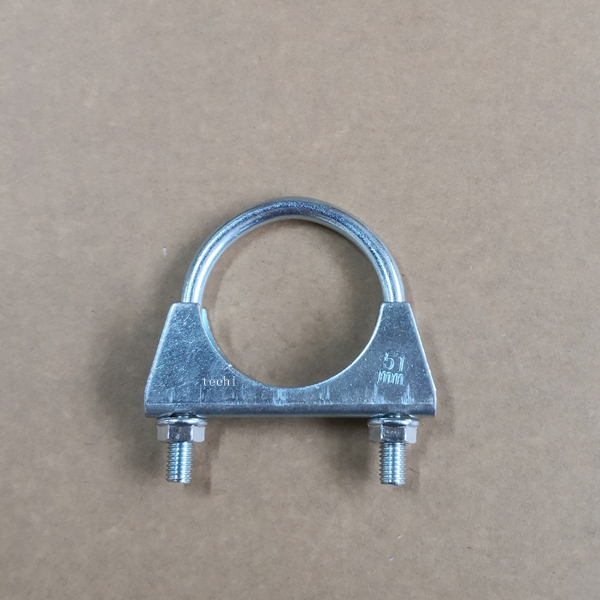

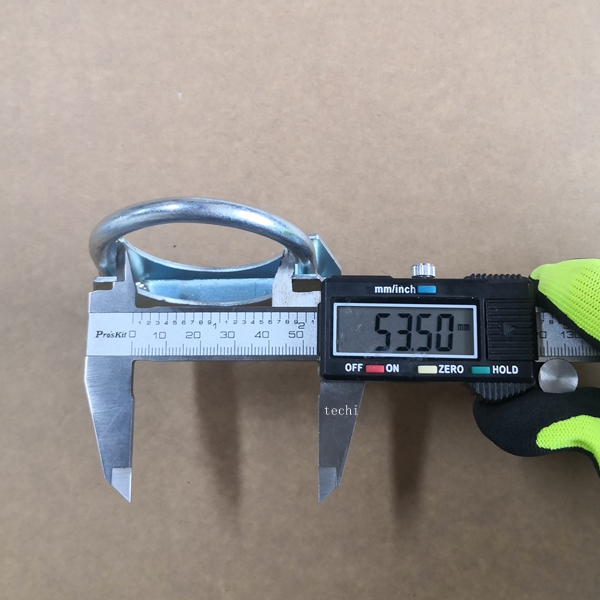

Exhaust pipe clamp 51mm

Material：Stainless Steel, Metal, Aluminium

model number：51MM

Type：Hardware Parts

Color：Customized Colors Accepted

Usage：Fastening

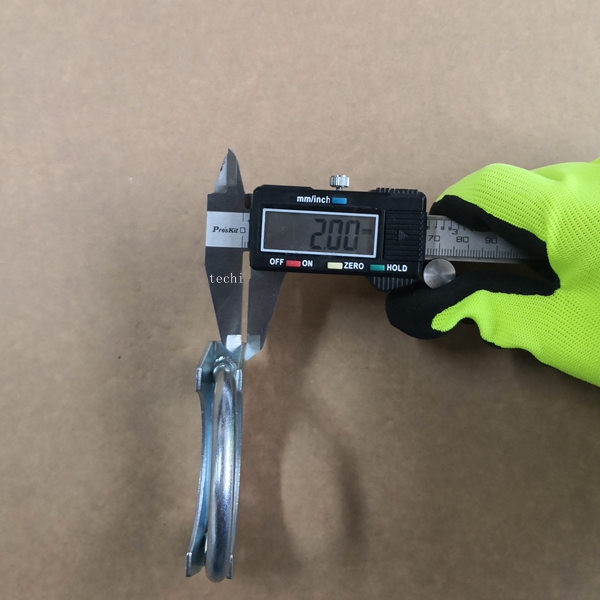

Thickness：2mm

Exhaust pipe clamp 51mm

U-bolt saddle muffler clamps are U-shaped clamps that connect exhaust pipes together in a muffler assembly, eliminating the need to weld. They secure the pipes without constricting air flow.

Exhaust pipe clamp 51mm Material：

1.Stainless Steel: SS201, SS303, SS304, SS316, SS410, SS420 and So on

2.Steel: Carbon Steel,Alloy Steel,Spring Steel and So on

3.Brass:C36000 , C37700 ( HPb59), C38500( HPb58),C27200(CuZn37), C28000(CuZn40),Copper (99% Cu) and so on

4.Aluminum: Al6061, Al6063 etc

5.Free Cutting Steel: 1213, 12L14,1215 and so on

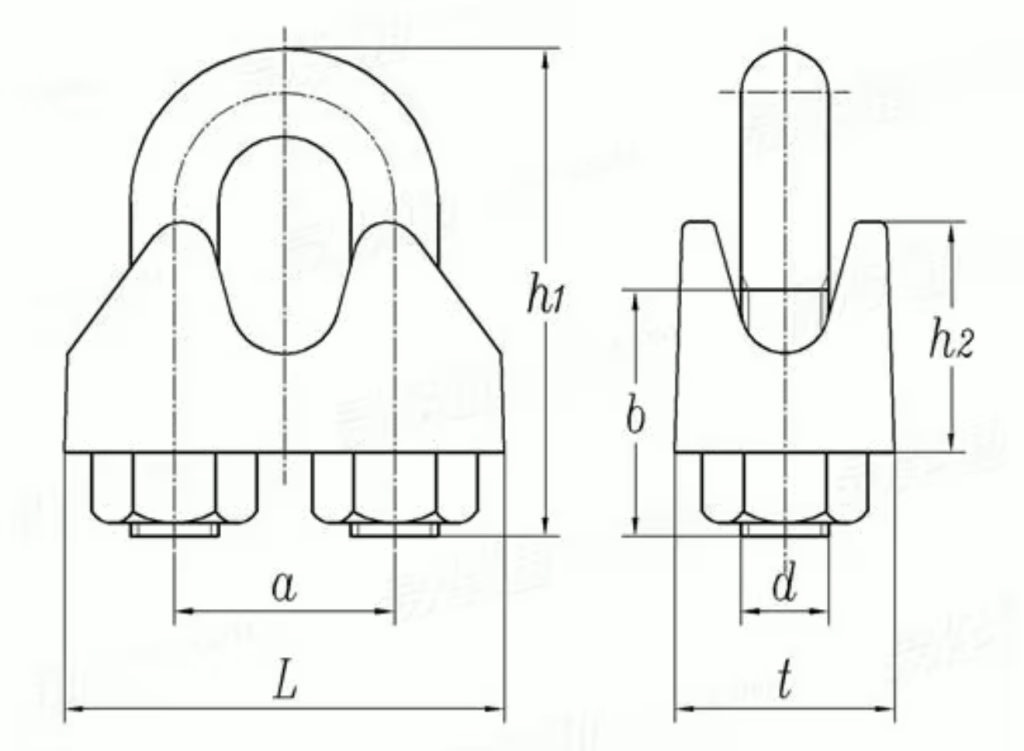

Exhaust pipe clamp 51 mmdimension and size:

size	3	5	6.5	8	10	11	13	14	16	19	22	26	30	34	40
d	M4	M5	M5	M6	M8	M8	M10	M10	M12	M12	M14	M14	M16	M16	M16
a	9	11	13	16	19	20	24	25	29	32	37	41	48	52	58
b	12	13	15	19	22	22	30	30	33	38	44	45	50	55	60
h₁	20	24	28	34	42	44	55	57	63	76	85	95	110	120	140
L	21	23	26	30	34	36	42	44	50	54	61	66	74	80	88
h₂	10	10	11	16	17	18	21	22	26	30	34	37	43	50	55
t	10	11	12	14	18	19	23	23	26	29	33	35	37	42	45
