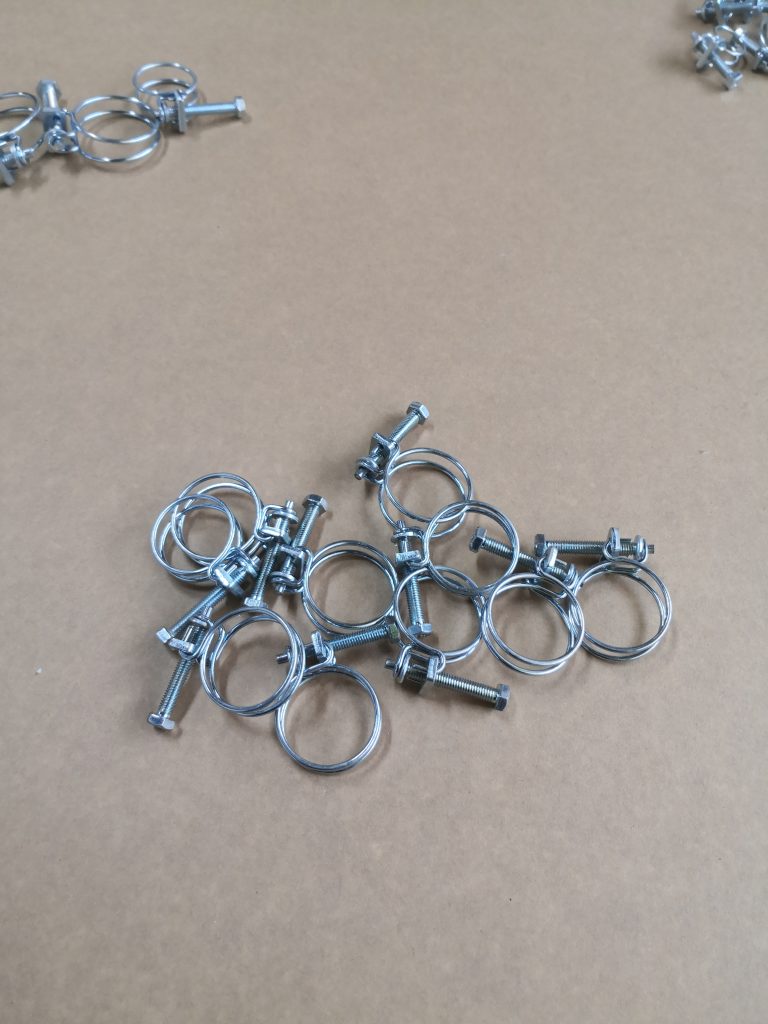

Heavy Duty Double Wire Hose Clamp for Industrial Use 27mm

Material:201,304 Stainless steel

Type：Stainless Steel Double Wire Spring Hose Clamp Clip

Wire diameter：1.5mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm

Screw：M5x30mm, M6x40/50/60/70mm

Surface treatment：Polishing/Zinc-plated

Color：Silver

Double wire hose clamp is a professional fastener with double-layer high-strength steel wire spiral winding structure, designed for high-pressure sealing and fixing of various hoses, pipes and cables. Compared with traditional hose clamps, its unique double wire structure provides more uniform radial pressure and stronger explosion resistance.

Heavy Duty Double Wire Hose Clamp for Industrial Use 27mm Features:

The double wire hose clamp is a high-performance fastener featuring a dual-layer spiral-wound high-strength steel wire construction, engineered specifically for secure high-pressure sealing and reliable fixation of hoses, pipes, and cables. Its innovative double-wire design delivers superior performance compared to conventional clamps by ensuring perfectly uniform radial pressure distribution while offering exceptional explosion resistance – making it ideal for demanding industrial applications where safety and durability are paramount. The clamp’s robust structure maintains consistent tension even under extreme pressure fluctuations and vibration, providing leak-proof connections that outperform traditional single-wire designs in both reliability and service life.

Heavy Duty Double Wire Hose Clamp for Industrial Use 27mm dimension and size:

Dimension Range mm	W1 – wire diameter	W1 – screw	W4 – wire dia	W4 – screw
11-14mm	1.5	M5×30	2	M6×30
13-16mm	1.5	M5×30	2	M6×30
15-18mm	1.5	M5×30	2	M6×30
17-20mm	1.8	M5×30	2	M6×30
19-22mm	1.8	M5×30	2	M6×30
20-24mm	1.8	M5×30	2	M6×30
22-26mm	1.8	M5×30	2	M6×30
24-28mm	1.8	M5×30	2	M6×35
26-30mm	2.2	M6×40	2	M6×35
28-32mm	2.2	M6×40	2	M6×40
31-35mm	2.2	M6×40	2	M6×40
34-38mm	2.2	M6×40	2	M6×40
35-40mm	2.2	M6×40	2	M6×40
37-42mm	2.2	M6×40	2	M6×40
40-45mm	2.2	M6×40	2	M6×40
43-48mm	2.2	M6×50	2	M6×40
45-50mm	2.2	M6×50	2.3	M6×40
47-52mm	2.2	M6×50	2.3	M6×50
50-55mm	2.2	M6×50	2.3	M6×50
53-58mm	2.2	M6×50	2.3	M6×50
55-60mm	2.2	M6×60	2.3	M6×50
54-62mm	2.2	M6×60	2.3	M6×50
60-65mm	2.5	M6×60	2.3	M6×50
63-68mm	2.5	M6×60	2.3	M6×50
65-70mm	2.5	M6×70	2.3	M6×50
