Heavy Duty Single Bolt Solid Strong Hose Clamps 22MM
Heavy-duty clamp designs typically include a metal band and a fastening mechanism (such as a bolt or nut) that applies pressure to force the clamp tightly against the pipe or hose, creating a secure connection or seal.
Heavy Duty Single Bolt Solid Strong Hose Clamps 22MM material:
W1: All of the parts galvanized steel
W2: the bolt and trunnion are galvanized steel, other parts 200 or 300 stainless steel.
W4: All of the parts are SS200 or SS300 stainless steel.
W5: All of parts are SS316 stainless steel.
Heavy Duty Single Bolt Solid Strong Hose Clamps 22MM size and dimension:
| SIZE | THICKNESS*WIDTH | SCREW SIZE |
| 17-19 | 0.6*18 | M5*40 |
| 20-22 | 0.6*18 | M5*40 |
| 23-25 | 0.6*18 | M5*40 |
| 26-28 | 0.6*18 | M5*40 |
| 29-31 | 0.6*20 | M6*50 |
| 32-35 | 0.6*20 | M6*50 |
| 36-39 | 0.6*20 | M6*50 |
| 40-43 | 0.6*20 | M6*50 |
| 44-47 | 0.8*22 | M6*60 |
| 48-51 | 0.8*22 | M6*60 |
| 52-55 | 0.8*22 | M6*60 |
| 56-59 | 0.8*22 | M6*60 |
| 60-63 | 0.8*22 | M6*60 |
| 64-67 | 0.8*22 | M6*60 |
| 68-73 | 0.8*24 | M8*70 |
| 74-79 | 0.8*24 | M8*70 |
| 80-85 | 0.8*24 | M8*70 |
| 86-91 | 0.8*24 | M8*70 |
| 92-97 | 0.8*24 | M8*70 |
| 98-103 | 0.8*24 | M8*80 |
| 104-112 | 0.8*24 | M8*80 |
| 113-121 | 0.8*24 | M8*80 |
| 122-130 | 0.8*24 | M8*80 |
| 131-139 | 1.0*24 | M10*90 |
| 140-148 | 1.0*24 | M10*90 |
| 149-161 | 1.0*24 | M10*90 |
| 162-174 | 1.0*24 | M10*90 |
| 175-187 | 1.0*24 | M10*90 |
| 188-200 | 1.0*24 | M10*90 |
| 201-213 | 1.0*24 | M10*100 |
| 214-226 | 1.0*24 | M10*100 |
| 227-239 | 1.0*24 | M10*100 |
| 240-252 | 1.0*24 | M10*100 |

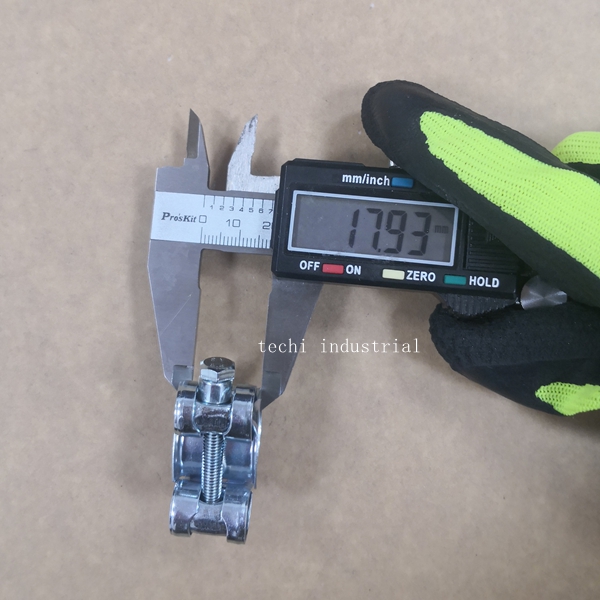

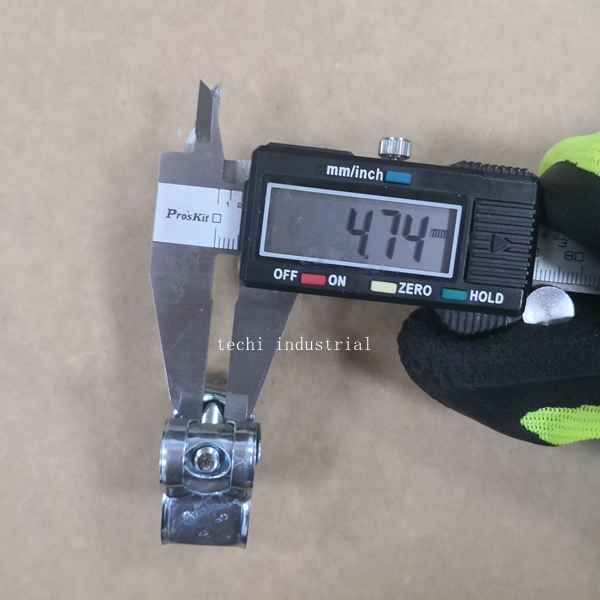

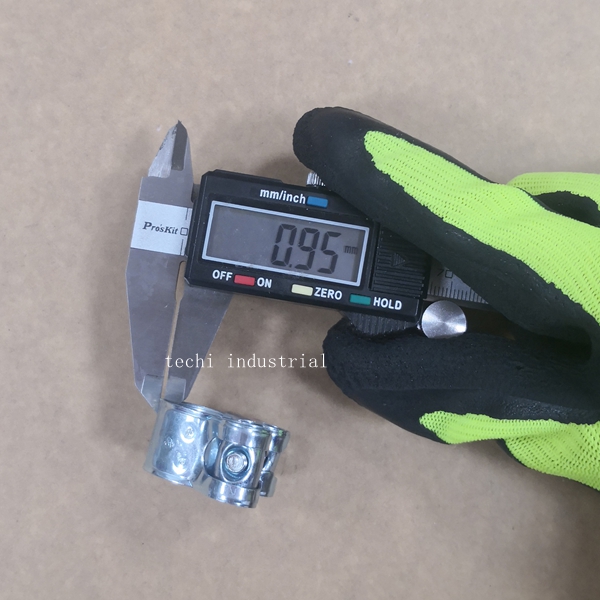

Heavy Duty Single Bolt Solid Strong Hose Clamps 22MM dimension and size:
