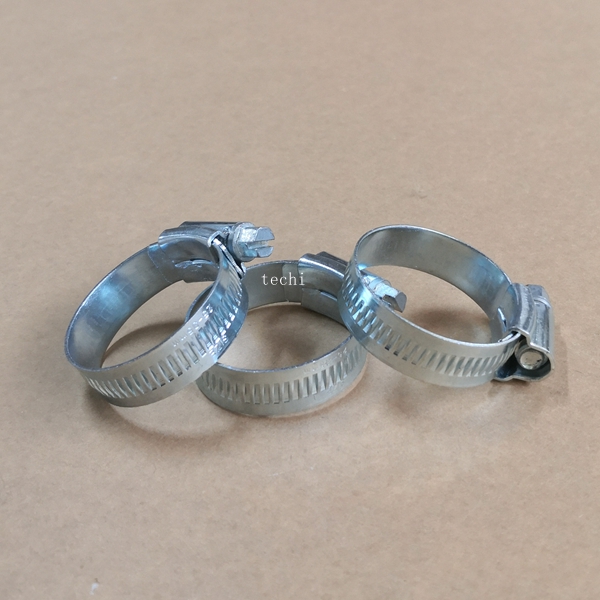

Hose Clamp General Purpose 25-45mm
Worm gear clamps, also called worm drive clamps, secure tube and hose connections to ensure a tight fit and prevent fluid and air from leaking. They’re called worm gear clamps because of the housed, helical-threaded screw that engages with the slots in the band and tightens the band as the screw turns. Worm gear clamps are non-permanent and remove in the same way they are installed, easing maintenance. They are used in a variety of automotive and industrial applications to secure hose and tube connections.
Hose Clamp General Purpose 25-45mm Feature
Heavy duty T bolt clamps having high band tension, provide uniform sealing pressure
Smooth underside&rouned band edges protect hoses
Hollow rollers provide high uniform torque
Welded construction for increased security and reliability
Hose Clamp General Purpose 25-45mm dimension and size:
| Product | Diameter Range | Packing/CTN | |||
| mm | Inches | Band Thickness | pcs | kgs | |
| Germany type hose clamp size 8-12mm | 8-12 | 5/16″-1/2″ | 0.6 | 2,000 | 14.5 |
| Germany type hose clamp size 8-16mm | 8-16 | 5/16″-5/8″ | 0.6 | 2,000 | 15.7 |
| Germany type hose clamp size 12-20mm | 12-20 | 1/2″-3/4″ | 0.6 | 2,000 | 16.7 |
| Germany type hose clamp size 12-22mm | 12-22 | 1/2″-7/8″ | 0.6 | 2,000 | 17.8 |
| Germany type hose clamp size 16-25mm | 16-25 | 5/8″-1″ | 0.6 | 2,000 | 18 |
| Germany type hose clamp size 16-27mm | 16-27 | 5/8″-1 1/16″ | 0.6 | 2,000 | 19.2 |
| Germany type hose clamp size 20-32mm | 20-32 | 3/4″-1 1/4″ | 0.6 | 2,000 | 18.1 |
| Germany type hose clamp size 25-40mm | 25-40 | 1″-1 5/8″ | 0.6 | 2,000 | 19.1 |
| Germany type hose clamp size 35-50mm | 35-50 | 1 1/4″-2″ | 0.6 | 1,000 | 21.8 |
| Germany type hose clamp size 40-60mm | 40-60 | 1 5/8″-2 3/8″ | 0.6 | 1,000 | 24.1 |
| Germany type hose clamp size 50-70mm | 50-70 | 2″-2 3/4″ | 0.6 | 1,000 | 27.5 |
| Germany type hose clamp size 60-80mm | 60-80 | 2 3/8″-3 1/8″ | 0.6 | 500 | 16.5 |
| Germany type hose clamp size 70-90mm | 70-90 | 2 3/4″-3 1/2″ | 0.6 | 500 | 17.5 |
| Germany type hose clamp size 80-100mm | 80-100 | 3 1/8″-4″ | 0.6 | 500 | 18.1 |
| Germany type hose clamp size 90-110mm | 90-110 | 3 1/2″-4 3/8″ | 0.6 | 500 | 20.1 |
| Germany type hose clamp size 100-120mm | 100-120 | 4″-4 3/4″ | 0.6 | 500 | 20.5 |
| Germany type hose clamp size 110-130mm | 110-130 | 4 3/8″-5 1/8″ | 0.6 | 250 | 11.2 |
| Germany type hose clamp size 120-140mm | 120-140 | 4 3/4″-5 1/2″ | 0.6 | 250 | 12 |
| Germany type hose clamp size 130-150mm | 130-150 | 5 1/8″-5 7/8″ | 0.6 | 250 | 12.9 |
| Germany type hose clamp size 140-160mm | 140-160 | 5 1/2″-6 1/4″ | 0.6 | 250 | 12.5 |

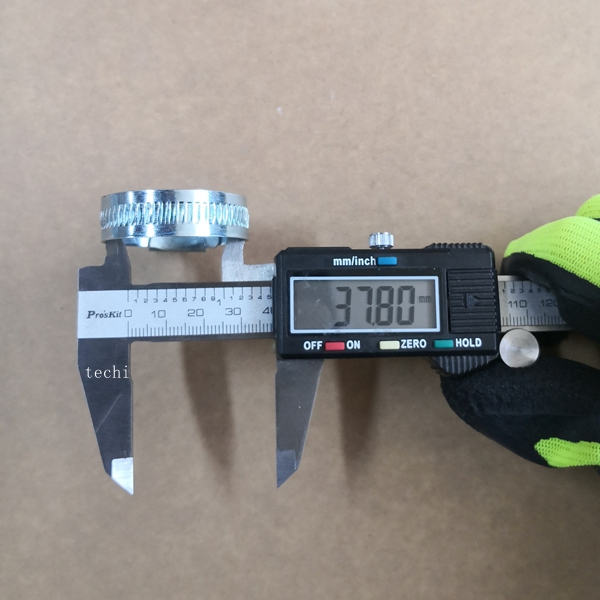

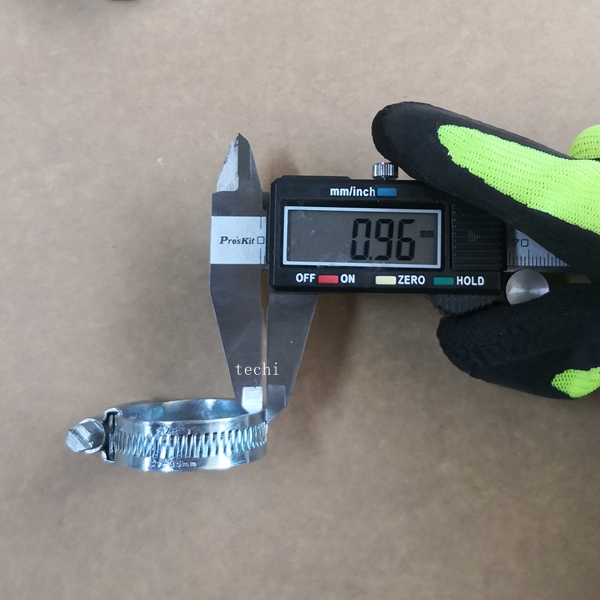

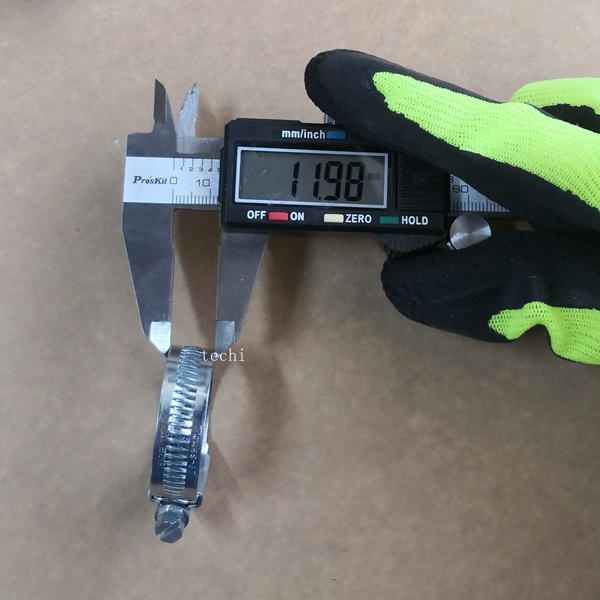

Hose Clamp General Purpose 25-45mm measurement and dimension :
