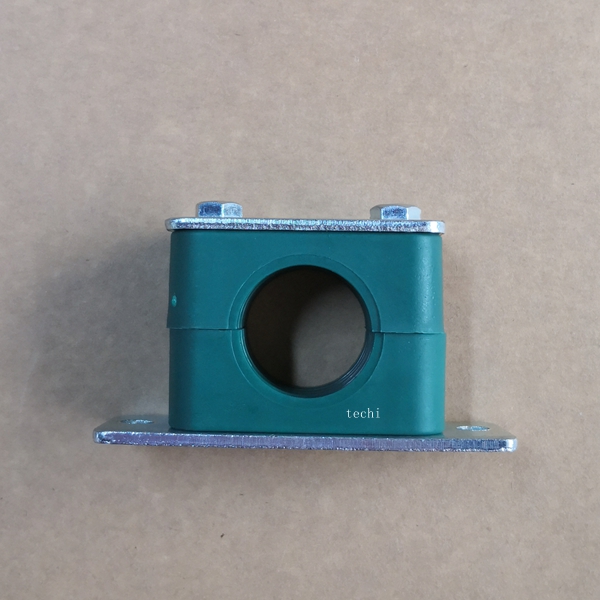

hydraulic hose clamp with Grooved bore clamp

SIZE：According to your request

Pressure：0-100pa

Bolt：Outer hexagon head bolt

clamp body：PP/PA/AL

Material of cover plate：AL/steel /stainless

Material of lweld plate：Steel/stainless

Techi industrial Co.,ltd is hydraulic pipe clamp factory and manufacturer in CHINA, Our products cover heavy series pipe clamp, light series pipe clamp, twin series pipe clamp, U form clamp, Saddle clamp,plastic PVC pipe clamp,polyamide pipe clamp.Aluminium(AL) hydraulic.pipe clamp.

hydraulic hose clamp with Grooved bore clamp Working Temperature:

PP -30 degree up to +90 degree in dark green color

PA -40 degree up to +120 degree in dark color

AL -50°C up to +300°C Natural color

Q235 -80°C up to +500°C Galvanizing or parkerising

SUS304 or SUS316 -80°C up to +500°C Natural color

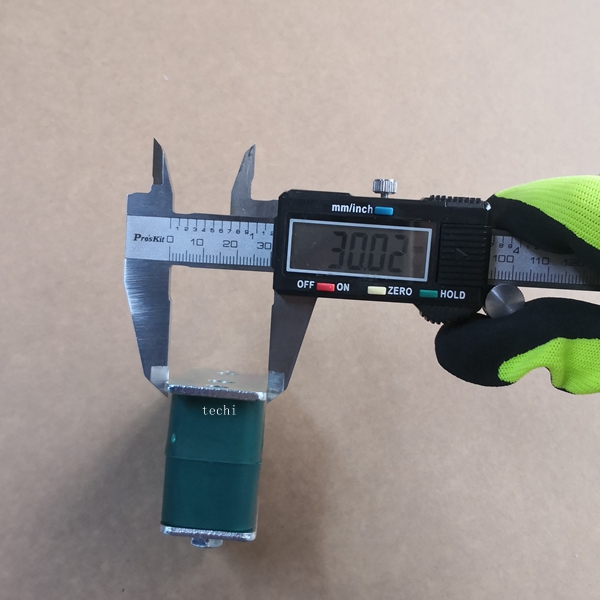

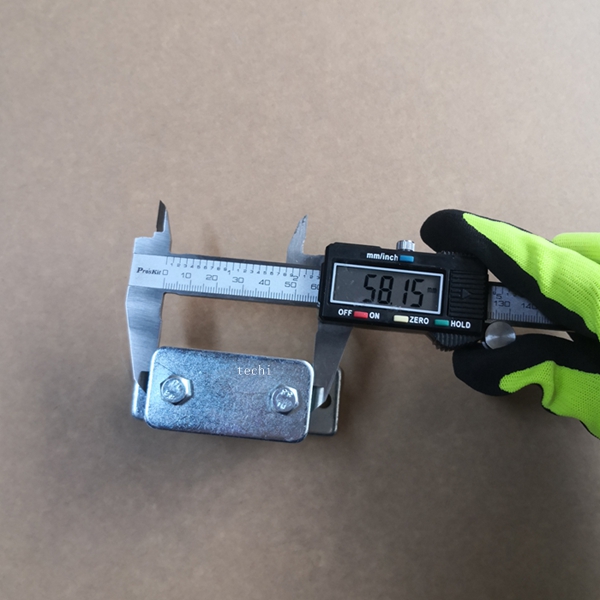

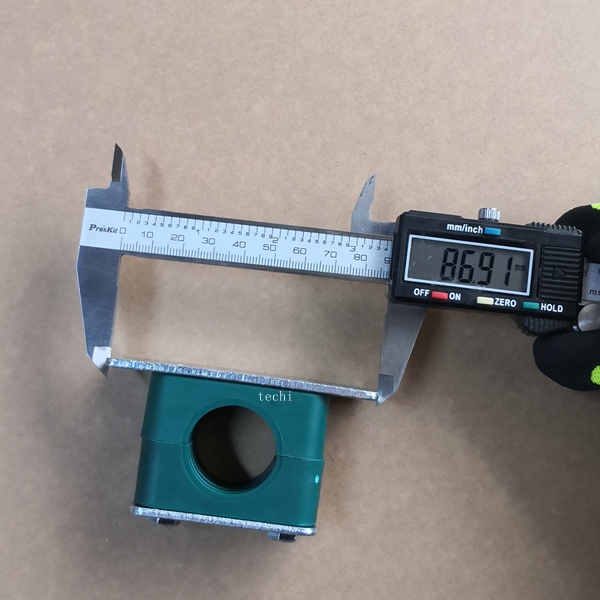

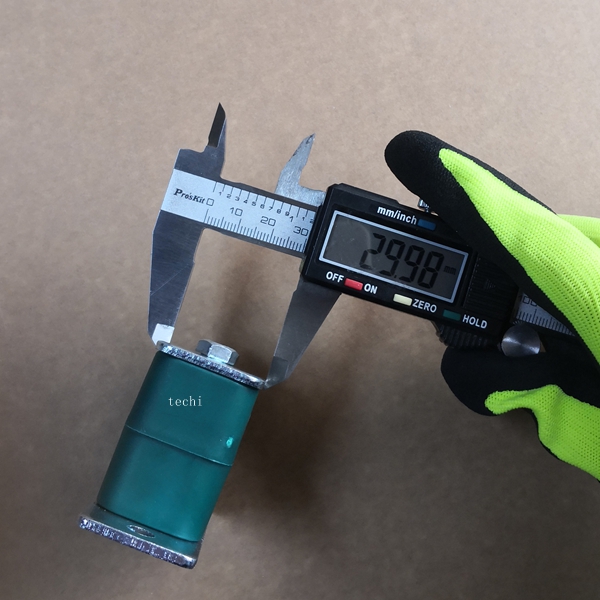

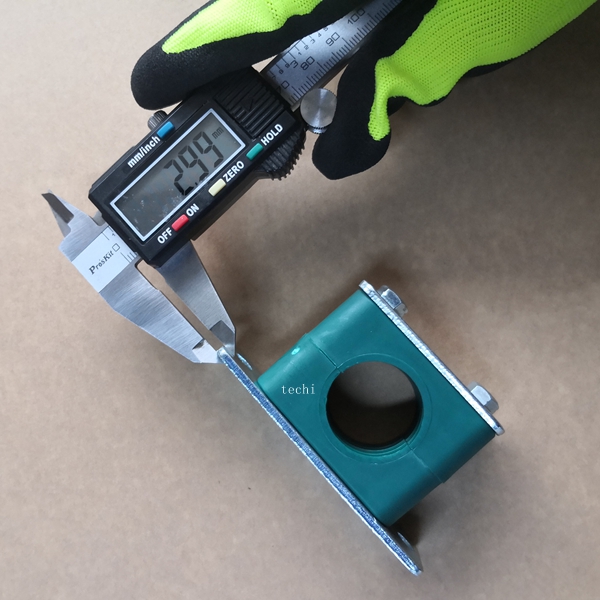

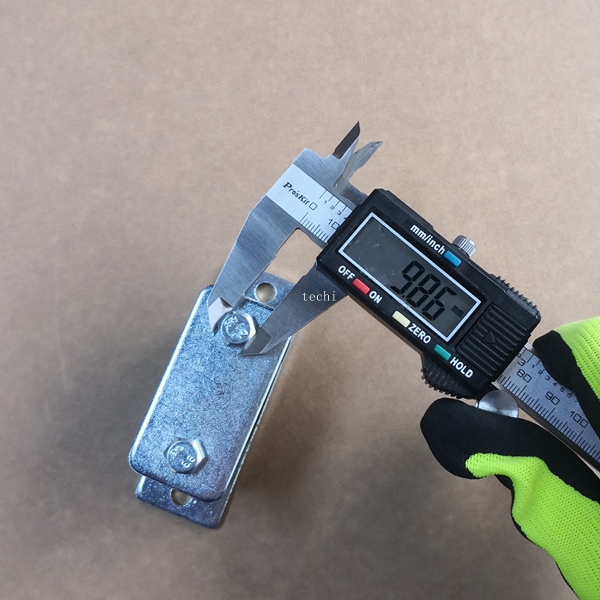

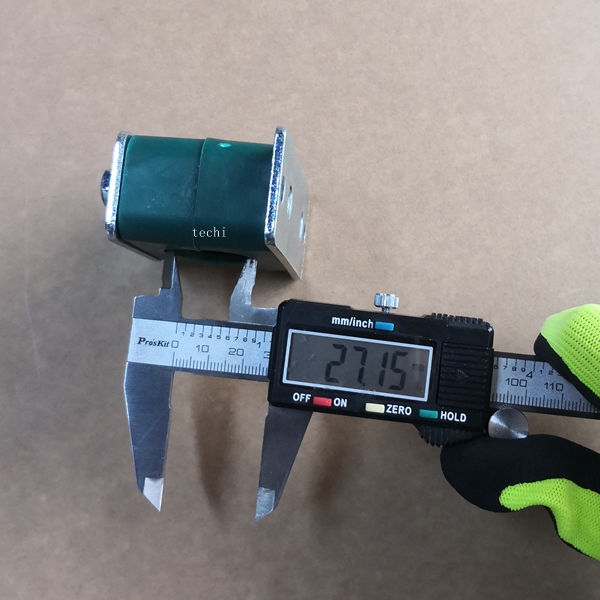

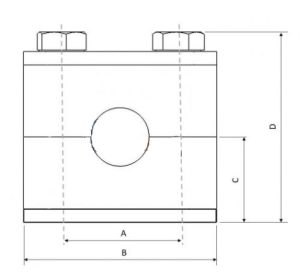

hydraulic hose clamp with Grooved bore clamp dimension and size:

Ø tubo (mm)	Grupo	A (mm)	B (mm)	C (mm)	D (mm)
6	1	20	36	16,5	37
8	1	20	36	16,5	37
10	1	20	36	16,5	37
12	1	20	36	16,5	37
12,7	2	26	42	19,5	43
13,5	2	26	42	19,5	43
14	2	26	42	19,5	43
15	2	26	42	19,5	43
16	2	26	42	19,5	43
17,2	2	26	42	19,5	40
18	2	26	42	19,5	43
19	3	33	50	21	46
20	3	33	50	21	46
21,3	3	33	50	21	46
22	3	33	50	21	46
25	3	33	50	21	46
26,9	4	40	60	24	52
28	4	40	60	24	52
30	4	40	60	24	52
32	5	52	71	32	68
33,7	5	52	71	32	68
35	5	52	71	32	68
38	5	52	71	32	68
40	5	52	71	32	68
42	5	52	71	32	68
44,45	6	66	86	36	76
48,3	6	66	86	36	76
50,8	6	66	86	36	76
