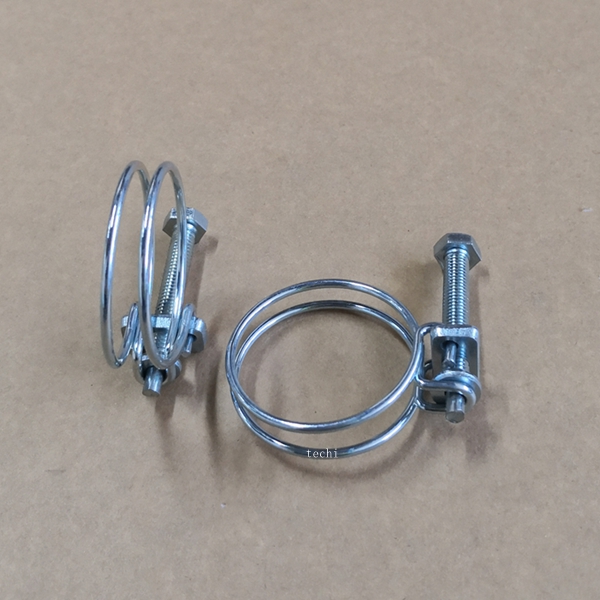

Hydraulic Wire Radiator Hose Clamps 38mm
Hydraulic Wire Radiator Hose Clamps are specialized high-pressure fastening components engineered for secure, leak-tight connections in automotive and industrial radiator systems. Integrating robust wire construction with hydraulic-compatible design, these clamps deliver reliable clamping force to withstand the cyclic pressure fluctuations and temperature extremes inherent to cooling system operations. Unlike standard clamps, they are optimized for the unique demands of hydraulic-assisted cooling circuits, ensuring long-term sealing integrity for radiator inlet/outlet hoses, heater core lines, and intercooler connections.
Hydraulic Wire Radiator Hose Clamps 38mm Wire Construction:
Dual-tempered high-carbon steel or 304 stainless steel wires (diameter: 2.2mm-3.5mm) with flattened contact surfaces, engineered to distribute clamping force evenly across hose walls without localized stress concentration.
Hydraulic Wire Radiator Hose Clamps 38mm dimension :
| No. | Size | Regulating range | The Size Of The Screw | Wire Diameter |
| 1 | 14 | 11-14 | M5*30 | 1.2 |
| 2 | 16 | 12-16 | M5*30 | 1.2 |
| 3 | 19 | 15-19 | M5*30 | 1.4 |
| 4 | 22 | 18-22 | M5*30 | 1.4 |
| 5 | 25 | 20-25 | M5*30 | 1.5 |
| 6 | 28 | 24-29 | M6*40 | 1.5 |
| 7 | 32 | 28-32 | M6*40 | 1.6 |
| 8 | 38 | 34-38 | M6*40 | 1.6 |
| 9 | 44 | 38-44 | M6*40 | 2 |
| 10 | 51 | 40-51 | M6*50 | 2 |
| 11 | 57 | 50-57 | M6*50 | 2 |
| 12 | 60 | 55-60 | M6*60 | 2 |
| 13 | 64 | 60-64 | M6*60 | 2 |
| 14 | 70 | 65-70 | M6*70 | 2 |
| 15 | 89 | 80-89 | M6*70 | 2.2 |
| 16 | 92 | 85-92 | M6*70 | 2.2 |
| 17 | 100 | 90-100 | M6*70 | 2.5 |
| 18 | 110 | 100-110 | M6*80 | 2.5 |
| 19 | 120 | 110-120 | M6*80 | 2.5 |

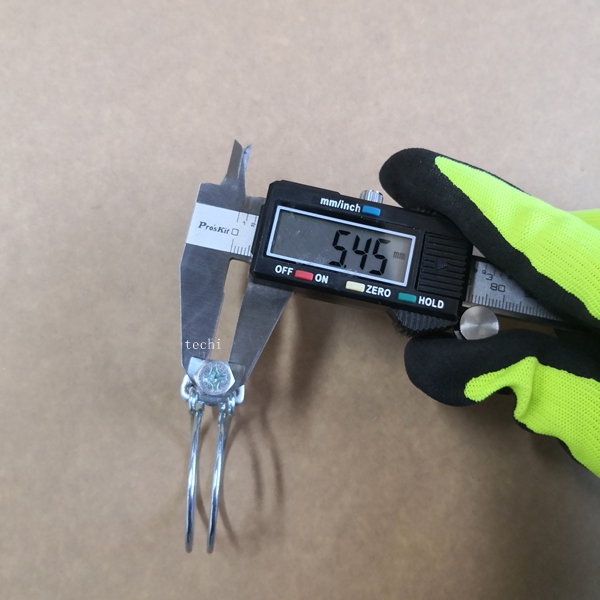

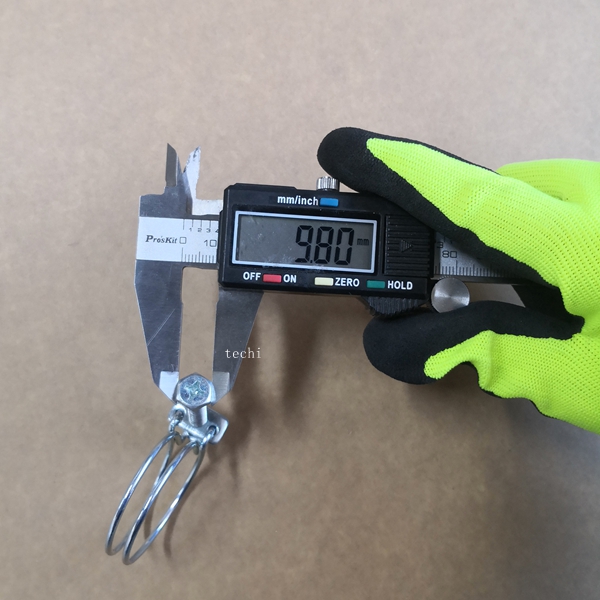

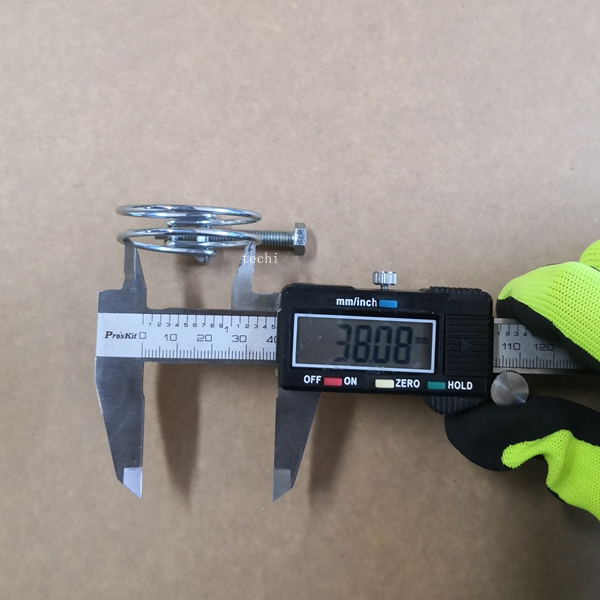

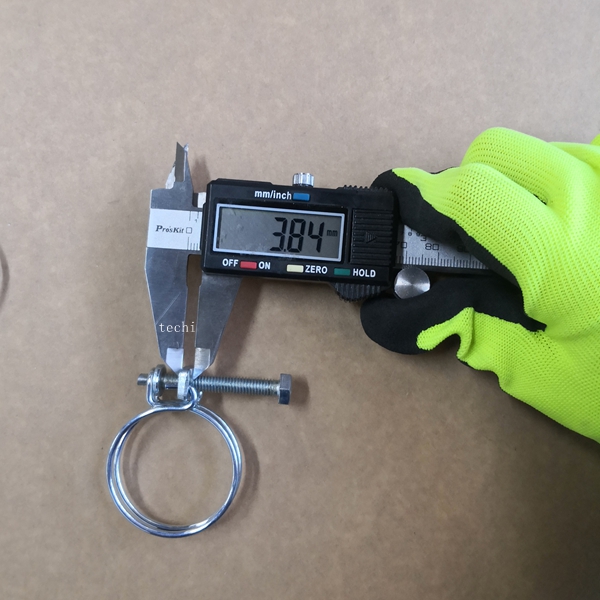

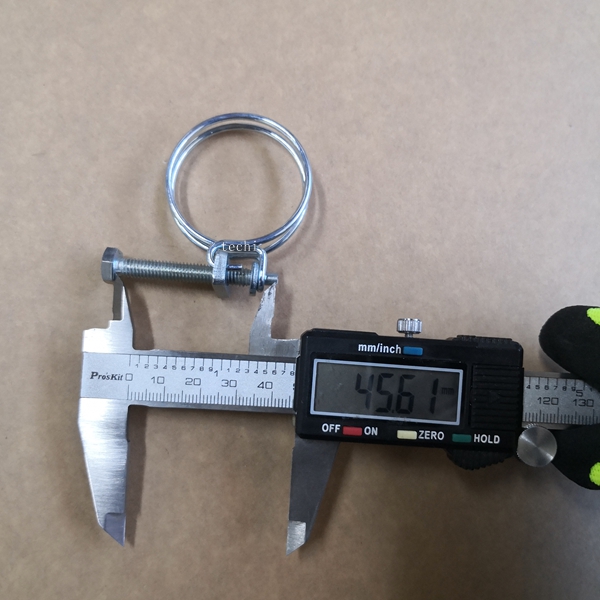

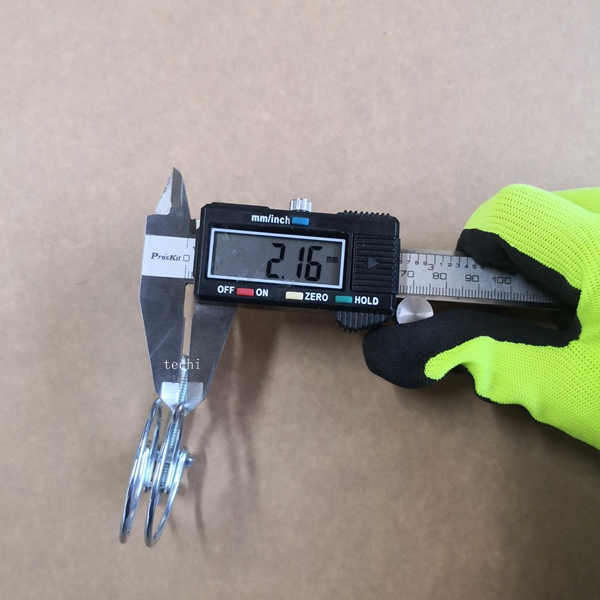

Hydraulic Wire Radiator Hose Clamps 38mm measurement and dimension :
