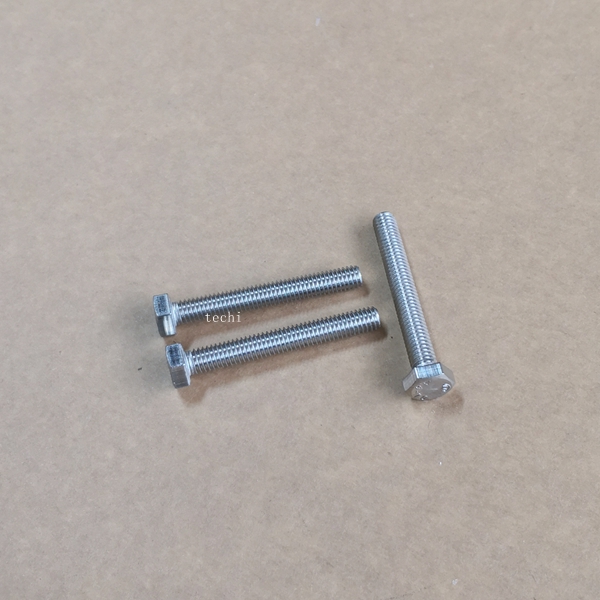

Metric System Outside Hexagon Head Full Thread Bolt M6*44mm

Hex tap bolts have a hexagonal head for installation and tightening. These bolts are fully threaded. Grade 304 stainless steel. For use in outdoor or corrosive environments. For salt water and waste treatment plants, use 316 stainless.

Metric System Outside Hexagon Head Full Thread Bolt M6*44mm Quality Assurance

Each bolt undergoes strict quality control, including dimensional accuracy checks, thread integrity testing, and corrosion resistance verification. Compliant with international standards (ISO, DIN, ASTM), ensuring consistent performance and compatibility with global applications.

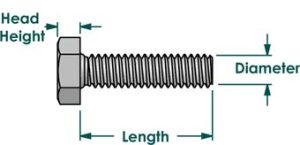

Metric System Outside Hexagon Head Full Thread Bolt M6*44mm dimension and size:

NOMINAL SIZE (D)	BODY DIAMETER		HEAD THICKNEASTM A193		ACROASTM A193 THE FLATS		ACROASTM A193 CORNERS
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX) (MIN)
m10	10	9.78	6.63	6.17	17	15.73	18.48
m12	12	11.73	7.76	4.24	19	17.73	20.78
m14	14	13.73	9.09	8.51	22	20.67	24.25
m16	16	15.73	10.32	9.68	24	23.67	27.71
m20	20	19.67	12.88	12.12	30	29.16	34.64
m24	24	23.67	15.44	14.56	36	35	41.57
m30	30	29.67	19.48	17.92	46	45	53.12
m36	36	35.61	23.38	21.63	55	53.8	63.51
m42	42	41.38	26.97	25.03	65	62.9	75.06
m48	48	47.38	31.07	28.93	75	72.6	86.6
m56	56	55.26	36.2	33.8	85	82.2	98.15
m64	64	63.26	41.32	38.68	95	91.8	109.7
m72	72	71.26	46.45	43.55	105	101.4	121.24
m80	80	79.26	51.58	48.42	115	111	132.72
