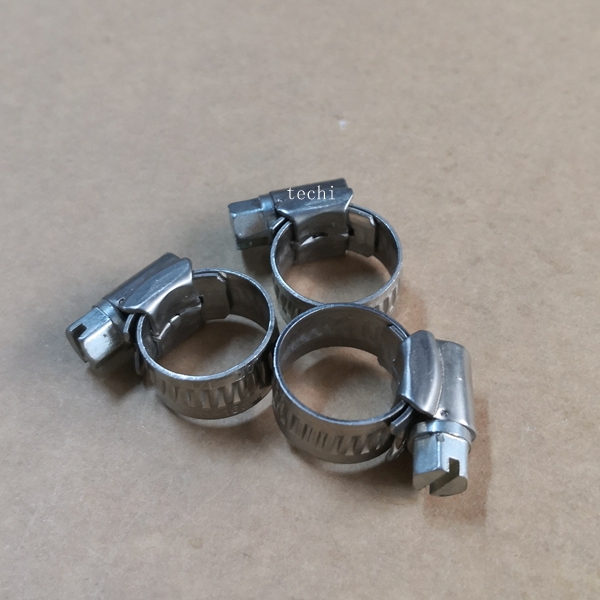

Metric Worm Drive Hose Clamp 11-16mm
The worm Gear Mechanism adopts precision worm + gear meshing design to ensure uniform tightening and avoid local stress concentration. The screw head is usually cross slot or slotted slot, which is convenient for screwdriver operation.
Metric Worm Drive Hose Clamp 11-16mm material:
Multiple material options available.
W1 – All parts carbon steel with zinc plated. (screw, hosing and band)
W2 – Hosing and band stainless steel 201/301/304, screw carbon steel with zinc/nickel plated
W4 – All parts stainless steel 201/301/304. (screw, hosing and band)
W5 – All parts stainless steel 316. (screw, hosing and band)
Metric Worm Drive Hose Clamp 11-16mm size:
| Product | Diameter Range | Packing/CTN | |||
| mm | Inches | Band Thickness | pcs | kgs | |
| Germany type hose clamp size 8-12mm | 8-12 | 5/16″-1/2″ | 0.6 | 2,000 | 14.5 |
| Germany type hose clamp size 8-16mm | 8-16 | 5/16″-5/8″ | 0.6 | 2,000 | 15.7 |
| Germany type hose clamp size 12-20mm | 12-20 | 1/2″-3/4″ | 0.6 | 2,000 | 16.7 |
| Germany type hose clamp size 12-22mm | 12-22 | 1/2″-7/8″ | 0.6 | 2,000 | 17.8 |
| Germany type hose clamp size 16-25mm | 16-25 | 5/8″-1″ | 0.6 | 2,000 | 18 |
| Germany type hose clamp size 16-27mm | 16-27 | 5/8″-1 1/16″ | 0.6 | 2,000 | 19.2 |
| Germany type hose clamp size 20-32mm | 20-32 | 3/4″-1 1/4″ | 0.6 | 2,000 | 18.1 |
| Germany type hose clamp size 25-40mm | 25-40 | 1″-1 5/8″ | 0.6 | 2,000 | 19.1 |
| Germany type hose clamp size 35-50mm | 35-50 | 1 1/4″-2″ | 0.6 | 1,000 | 21.8 |
| Germany type hose clamp size 40-60mm | 40-60 | 1 5/8″-2 3/8″ | 0.6 | 1,000 | 24.1 |
| Germany type hose clamp size 50-70mm | 50-70 | 2″-2 3/4″ | 0.6 | 1,000 | 27.5 |
| Germany type hose clamp size 60-80mm | 60-80 | 2 3/8″-3 1/8″ | 0.6 | 500 | 16.5 |
| Germany type hose clamp size 70-90mm | 70-90 | 2 3/4″-3 1/2″ | 0.6 | 500 | 17.5 |
| Germany type hose clamp size 80-100mm | 80-100 | 3 1/8″-4″ | 0.6 | 500 | 18.1 |
| Germany type hose clamp size 90-110mm | 90-110 | 3 1/2″-4 3/8″ | 0.6 | 500 | 20.1 |
| Germany type hose clamp size 100-120mm | 100-120 | 4″-4 3/4″ | 0.6 | 500 | 20.5 |
| Germany type hose clamp size 110-130mm | 110-130 | 4 3/8″-5 1/8″ | 0.6 | 250 | 11.2 |
| Germany type hose clamp size 120-140mm | 120-140 | 4 3/4″-5 1/2″ | 0.6 | 250 | 12 |
| Germany type hose clamp size 130-150mm | 130-150 | 5 1/8″-5 7/8″ | 0.6 | 250 | 12.9 |
| Germany type hose clamp size 140-160mm | 140-160 | 5 1/2″-6 1/4″ | 0.6 | 250 | 12.5 |

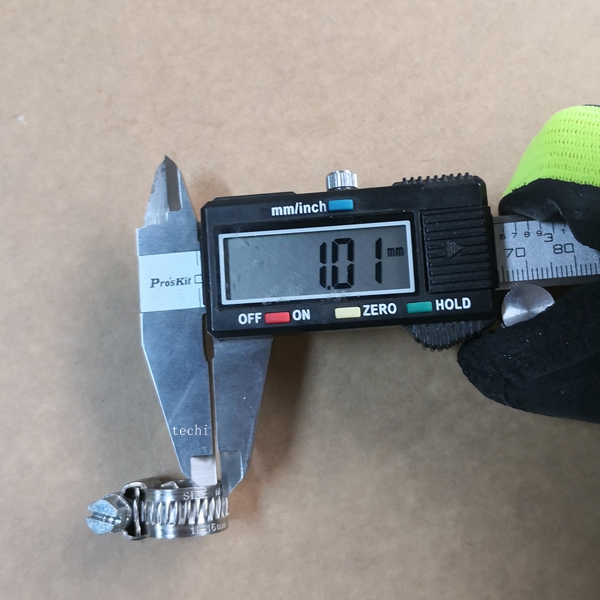

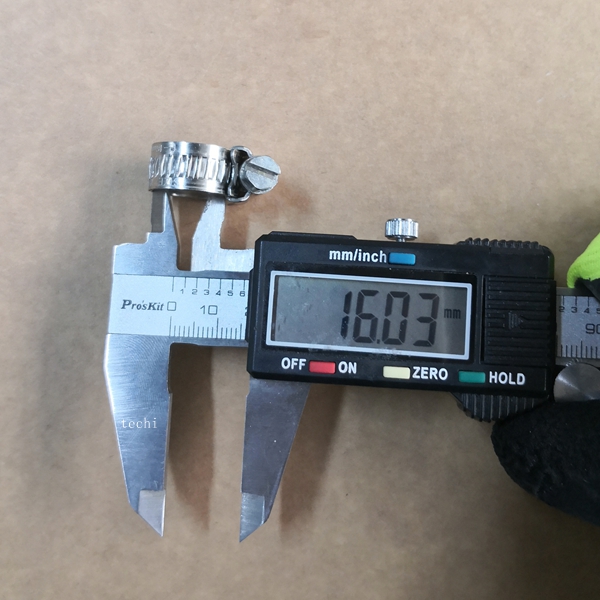

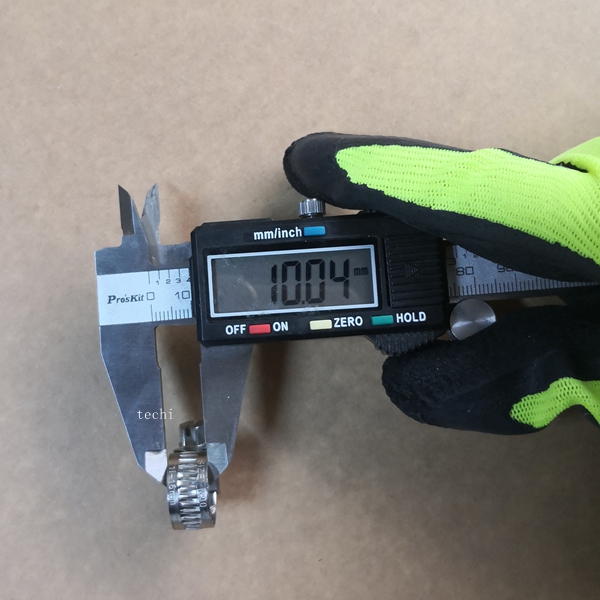

Metric Worm Drive Hose Clamp 11-16mm measurement and dimension :
