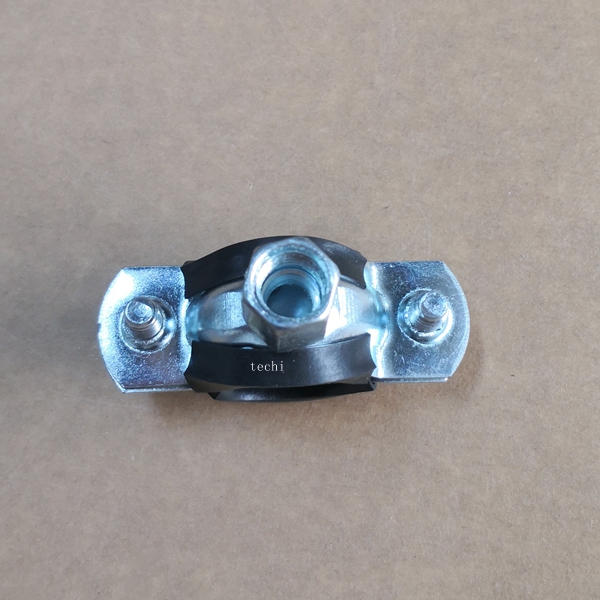

Rubber Hose Clamp 20-25mm
A rubber hose clamp is a device used for securing and supporting pipes. It typically consists of a metal clamp and a rubber insert. These clamps can effectively reduce pipe vibrations and noise while providing stable support to prevent pipe displacement. They can be used for connecting and securing water pipes, oil pipes, gas pipes, and other rubber hoses. Due to their convenience and stability, they are widely used in industries, automotive applications, and household equipment.
Rubber Hose Clamp 20-25mm material:
W1 series (all the parts are carbon steel )
W4 series (all the parts are SS200 or 300 )
W5 series (all the parts are SS316 )

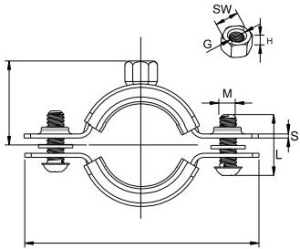

Rubber Hose Clamp 20-25mm dimension and size:
| CODE | SIZE | RANGE(φD)(mm) | STEELSIZE(S*B) | SCREWSIZE(M*L) | NUTSIZE(G) | PCS/CTN |
| 12A0012 | 1/8″ | 11-14 | 1.5*20 | M6*20 | M8 | 220 |
| 12A0015 | 1/4″ | 12-15 | 1.5*20 | M6*20 | M8 | 220 |
| 12A0018 | 3/8″ | 15-19 | 1.5*20 | M6*20 | M8 | 200 |
| 12A0022 | 1/2″ | 20-25 | 1.5*20 | M6*20 | M8 | 200 |
| 12A0028 | 3/4″ | 26-30 | 1.5*20 | M6*20 | M8 | 160 |
| 12A0035 | 1″ | 32-36 | 1.5*20 | M6*20 | M8 | 120 |
| 12A0040 | 1-1/4″ | 38-43 | 1.5*20 | M6*20 | M8 | 120 |
| 12A0048 | 1-1/2″ | 47-51 | 1.5*20 | M6*20 | M8 | 180 |
| 54-58 | 54-58 | 1.5*20 | M6*20 | M8 | 150 | |
| 12A0060 | 2″ | 60-64 | 1.5*20 | M6*20 | M8 | 170 |
| 12A0075 | 2-1/2″ | 75-80 | 1.8*20 | M6*20 | M8+10 | 120 |
| 12A0090 | 3″ | 87-92 | 1.8*20 | M6*20 | M8+10 | 100 |
| 12A0100 | 2003/1/2 | 99-105 | 1.8*20 | M6*20 | M8+10 | 100 |
| 12A0110 | 110 | 107-112 | 1.8*20 | M6*20 | M8+10 | 60 |
| 12A0115 | 4″ | 113-118 | 2.0*25 | M6*20 | M8+10 | 60 |
| 120-129 | 120-129 | 2.0*25 | M6*20 | M8+10 | 50 | |
| 129-135 | 129-135 | 2.0*25 | M6*20 | M8+10 | 45 | |
| 12A0140 | 5″ | 138-142 | 2.5*25 | M6*20 | M8+10 | 40 |
| 149-161 | 149-161 | 2.5*25 | M6*20 | M8+10 | 30 | |
| 12A0160 | 6″ | 159-166 | 2.5*25 | M6*20 | M8+10 | 30 |
| 12A0200 | 198-207 | 198-207 | 2.5*25 | M6*20 | M8+10 | 25 |
| 12A0220 | 8″ | 215-220 | 2.5*25 | M6*20 | M8+10 | 15 |

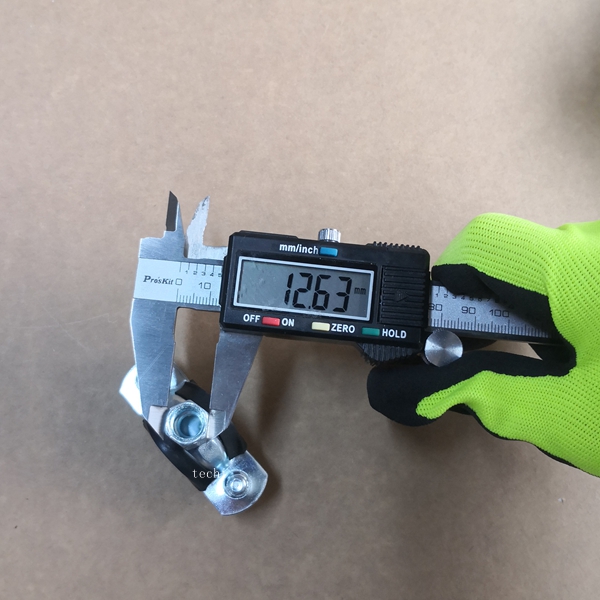

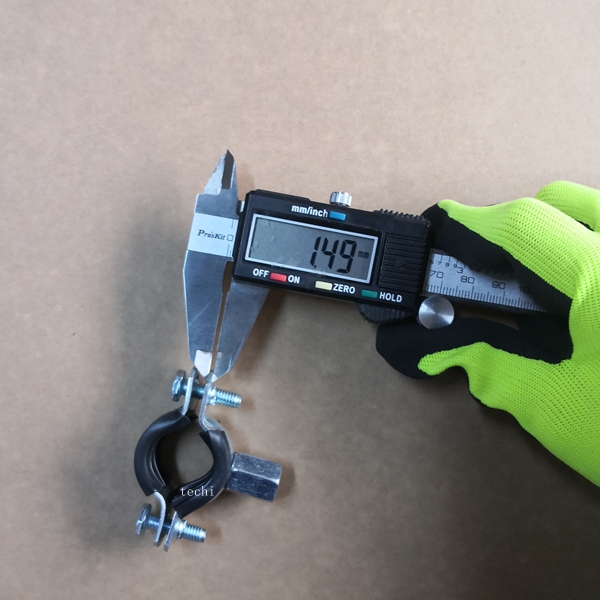

Rubber Hose Clamp 20-25mm measurement and dimension :
