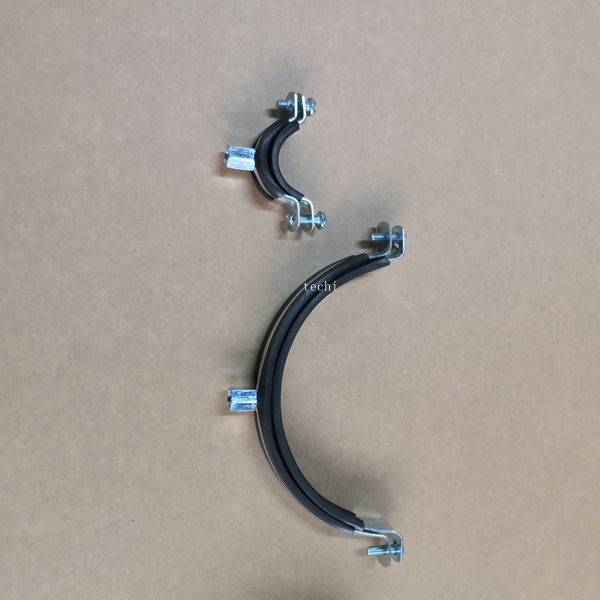

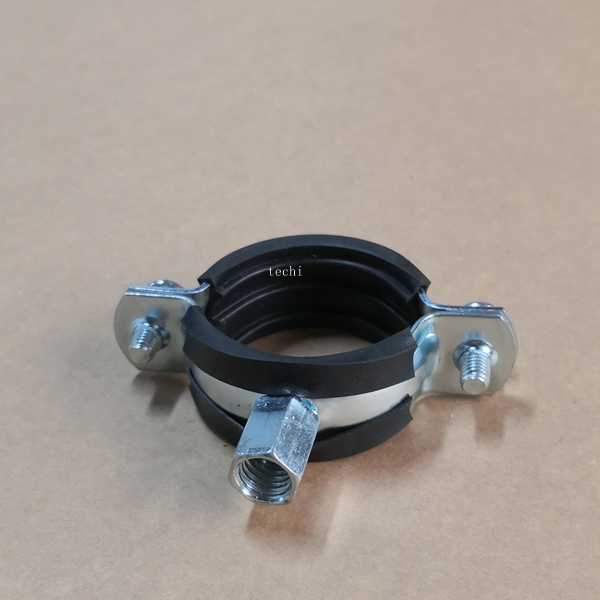

Rubber lined split clamp 40-44mm

Material：Stainless Steel

Surface Treatment：Polished

Bandwidth：20mm

Thickness：1.2mm/2.0mm

Welded Nut：M8+M10

Side Screw：M6

Color：Blue or sliver

Rubber lined split clamp is mainly used with light steel pipe or CPVC pipe, and it is lined by EPDM to reduce noise and vibration as DIN 4109/ISO 3822-1. Two set screws are equipped for quick installation.

Rubber lined split clamp 40-44mm Application:

usedfor moiunting of pipes to the walls(vertical/horizontal),cellings and floors.

for suspending stationarynon-insulatedcopper tubing lines.

being fasteners for pipelines,suchas,heating,sanitary and waste water pipes,to walls, cellings and floors.

Rubber lined split clamp 40-44mm dimension and size:

CODE	SIZE	RANGE(φD)(mm)	STEELSIZE(S*B)	SCREWSIZE(M*L)	NUTSIZE(G)	PCS/CTN
12A0012	1/8″	11-14	1.5*20	M6*20	M8	220
12A0015	1/4″	12-15	1.5*20	M6*20	M8	220
12A0018	3/8″	15-19	1.5*20	M6*20	M8	200
12A0022	1/2″	20-25	1.5*20	M6*20	M8	200
12A0028	3/4″	26-30	1.5*20	M6*20	M8	160
12A0035	1″	32-36	1.5*20	M6*20	M8	120
12A0040	1-1/4″	38-43	1.5*20	M6*20	M8	120
12A0048	1-1/2″	47-51	1.5*20	M6*20	M8	180
	54-58	54-58	1.5*20	M6*20	M8	150
12A0060	2″	60-64	1.5*20	M6*20	M8	170
12A0075	2-1/2″	75-80	1.8*20	M6*20	M8+10	120
12A0090	3″	87-92	1.8*20	M6*20	M8+10	100
12A0100	2003/1/2	99-105	1.8*20	M6*20	M8+10	100
12A0110	110	107-112	1.8*20	M6*20	M8+10	60
12A0115	4″	113-118	2.0*25	M6*20	M8+10	60
	120-129	120-129	2.0*25	M6*20	M8+10	50
	129-135	129-135	2.0*25	M6*20	M8+10	45
12A0140	5″	138-142	2.5*25	M6*20	M8+10	40
	149-161	149-161	2.5*25	M6*20	M8+10	30
12A0160	6″	159-166	2.5*25	M6*20	M8+10	30
12A0200	198-207	198-207	2.5*25	M6*20	M8+10	25
12A0220	8″	215-220	2.5*25	M6*20	M8+10	15
