Stainless Steel Connector Fastener Pipe Clip 24mm
Fitting Saddle Pipe Clamp is a professional pipe fixing component designed for secure installation and support of pipes in various systems. It features a saddle-shaped structure that fits closely with the pipe surface, ensuring stable positioning and preventing slippage. Made of high-quality materials (e.g., stainless steel, carbon steel with zinc plating, plastic), it offers excellent corrosion resistance and durability to adapt to different working environments. Suitable for pipes of various diameters, it is easy to install without damaging the pipe surface, widely used in plumbing, HVAC, industrial pipelines, and construction projects.
Stainless Steel Connector Fastener Pipe Clip 24mm Application Scope:
Suitable for fixing metal, plastic, or composite pipes (DN15-DN200) in water supply, drainage, gas, oil, and industrial fluid transmission systems. Operating temperature ranges from -20℃ to 120℃ (varies by material). Complies with international standards (e.g., DIN/ANSI) for reliable performance in indoor, outdoor, and harsh environment installations.
Stainless Steel Connector Fastener Pipe Clip 24mm dimension and size:
| ITEM | T | W | A | B | C | D |
| CS152022 | 1.5 | 20 | 22 | 54 | 74 | 9 |
| CS152027 | 1.5 | 20 | 27 | 59 | 79 | 9 |
| CS152034 | 1.5 | 20 | 34 | 66 | 86 | 9 |
| CS152043 | 1.5 | 20 | 43 | 70 | 90 | 9 |
| CS152050 | 1.5 | 20 | 50 | 82 | 102 | 9 |
| CS152060 | 1.5 | 20 | 60 | 104 | 124 | 9 |
| CS152070 | 1.5 | 20 | 70 | 107 | 127 | 9 |
| CS202076 | 2.0 | 20 | 76 | 107 | 127 | 9 |
| CS202080 | 2.0 | 20 | 80 | 117 | 137 | 9 |

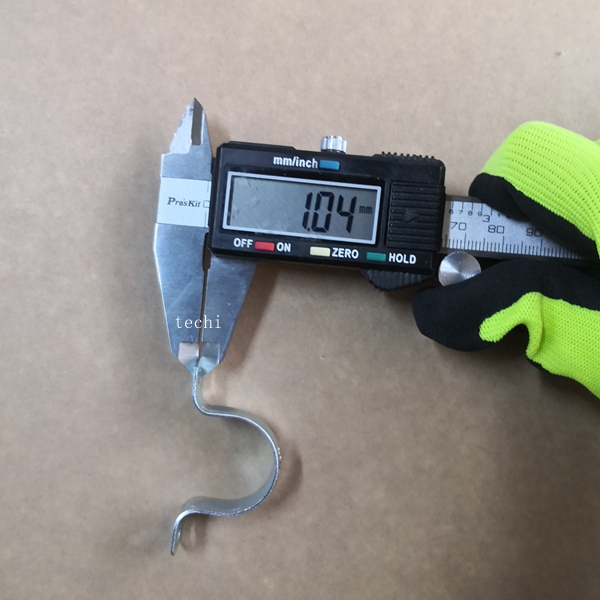

Stainless Steel Connector Fastener Pipe Clip 24mm measurement and dimension :
