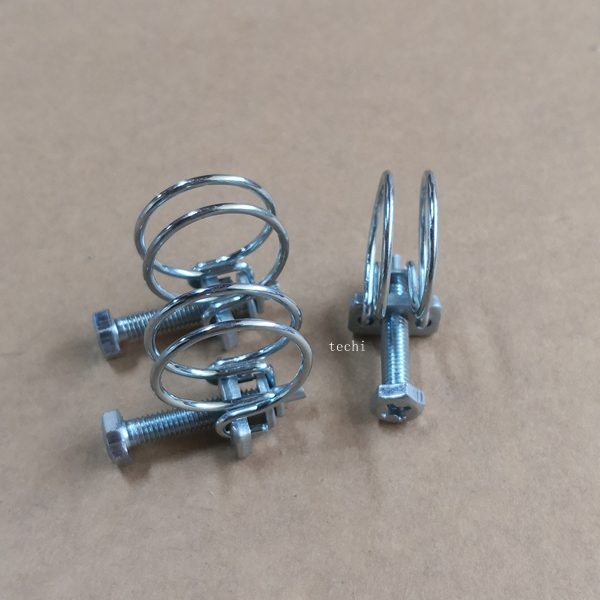

Stainless Steel Special-shaped Pressure Springs 20mm

material:Stainless Steel, Galvanized Steel

Type:Double wire hose clips

Wire diameter：1.5mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm

Screw：M5x30mm, M6x40/50/60/70mm

Surface treatment：Polishing/Zinc-plated

Color：Silver

Tianjin techi industrial co., is a double wires hose clamp,single wire hose clip manufacturer in China,factory wholesale price.we supply stainless steel 304 316 wire hose clamps and galvanized double wires hose clamps.double wire hose clamp size 3/8” 1/2” 5/8” 3/4” 1″ 2” 3” 4” 5”.All these products are tested by our highly skilled and experts

Stainless Steel Special-shaped Pressure Springs 20mm material:

The hoop plumbing fastener is made of stainless steel, anti-corrosion and rust-proof, strong and durable, and can be used flexibly in your daily life, whether indoors or outdoors;

Stainless Steel Special-shaped Pressure Springs 20mm dimension and size:

Clamping Range	Wire diameter	Screws size	Quantity per Bag	Quantity per Box
Clamping Range	mm	Screws size	Quantity per Bag	Quantity per Box
11-14	1.5	M5x30	100	2000
13-16	1.5	M5x30	100	2000
15-18	1.5	M5x30	100	2000
17-20	1.8	M5x30	100	2000
19-22	1.8	M5x30	100	1500
20-24	1.8	M5x30	100	1500
22-26	1.8	M5x30	100	1500
24-28	1.8	M5x30	100	1500
26-30	2.2	M6x40	50	500
28-32	2.2	M6x40	50	500
31-35	2.2	M6x40	50	500
34-38	2.2	M6x40	50	500
35-40	2.2	M6x40	50	500
37-42	2.2	M6x40	50	500
40-45	2.2	M6x40	50	500
43-48	2.2	M6x50	50	500
45-50	2.2	M6x50	25	500
47-52	2.2	M6x50	25	500
50-55	2.2	M6x50	25	500
53-58	2.2	M6x50	25	500
55-60	2.2	M6x60	25	500
54-62	2.2	M6x60	25	500
60-65	2.5	M6x60	25	500
63-68	2.5	M6x60	25	500
65-70	2.5	M6x70	25	250
70-75	2.5	M6x70	10	250
75-80	2.5	M6x70	10	250
80-85	2.5	M6x70	10	250
84-90	2.5	M8x70	10	250
89-95	2.5	M8x70	10	250
94-100	2.5	M8x80	10	250
98-105	2.5	M8x80	10	250
103-110	2.5	M8x80	10	250
108-115	2.5	M8x80	10	250
113-120	2.5	M8x80	10	250
