Strut Hex Head Bolt – Silver Galvanized M16*74mm
Hex tap bolts have a hexagonal head for installation and tightening. These bolts are fully threaded. Grade 304 stainless steel. For use in outdoor or corrosive environments. For salt water and waste treatment plants, use 316 stainless.
Strut Hex Head Bolt – Silver Galvanized M16*74mm Thread Standard:
Precision-cut metric coarse thread (ISO standard), ensuring tight fit and strong load-bearing capacity to prevent loosening under vibration or pressure.
Strut Hex Head Bolt – Silver Galvanized M16*74mm dimension and size:
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | |||
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) (MIN) | |
| m10 | 10 | 9.78 | 6.63 | 6.17 | 17 | 15.73 | 18.48 |
| m12 | 12 | 11.73 | 7.76 | 4.24 | 19 | 17.73 | 20.78 |
| m14 | 14 | 13.73 | 9.09 | 8.51 | 22 | 20.67 | 24.25 |
| m16 | 16 | 15.73 | 10.32 | 9.68 | 24 | 23.67 | 27.71 |
| m20 | 20 | 19.67 | 12.88 | 12.12 | 30 | 29.16 | 34.64 |
| m24 | 24 | 23.67 | 15.44 | 14.56 | 36 | 35 | 41.57 |
| m30 | 30 | 29.67 | 19.48 | 17.92 | 46 | 45 | 53.12 |
| m36 | 36 | 35.61 | 23.38 | 21.63 | 55 | 53.8 | 63.51 |
| m42 | 42 | 41.38 | 26.97 | 25.03 | 65 | 62.9 | 75.06 |
| m48 | 48 | 47.38 | 31.07 | 28.93 | 75 | 72.6 | 86.6 |
| m56 | 56 | 55.26 | 36.2 | 33.8 | 85 | 82.2 | 98.15 |
| m64 | 64 | 63.26 | 41.32 | 38.68 | 95 | 91.8 | 109.7 |
| m72 | 72 | 71.26 | 46.45 | 43.55 | 105 | 101.4 | 121.24 |
| m80 | 80 | 79.26 | 51.58 | 48.42 | 115 | 111 | 132.72 |

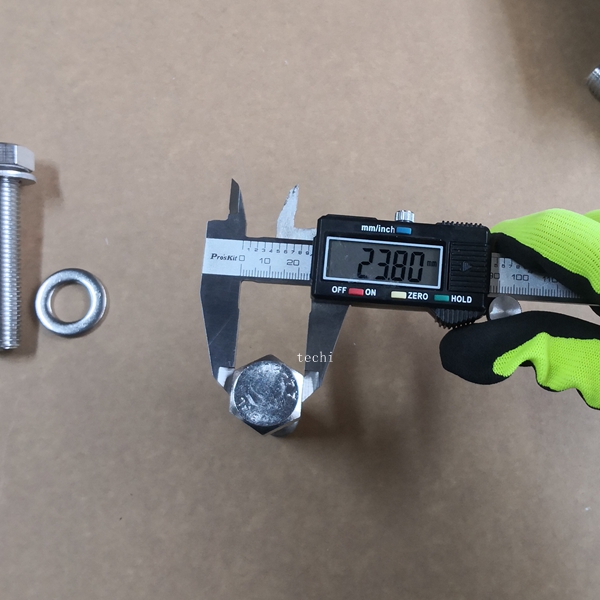

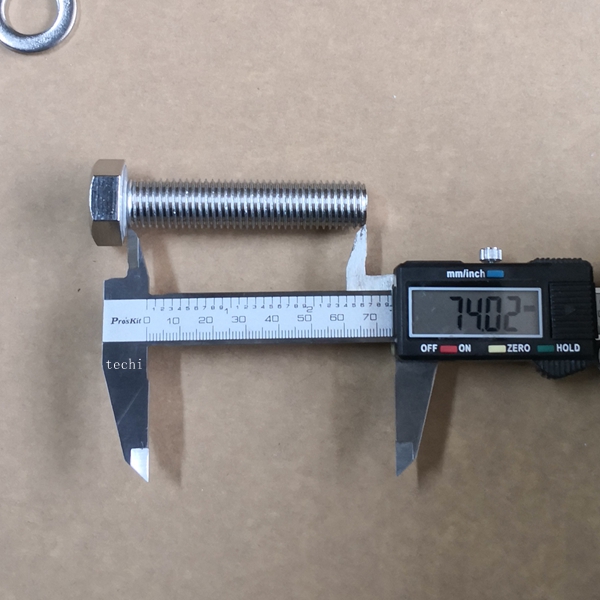

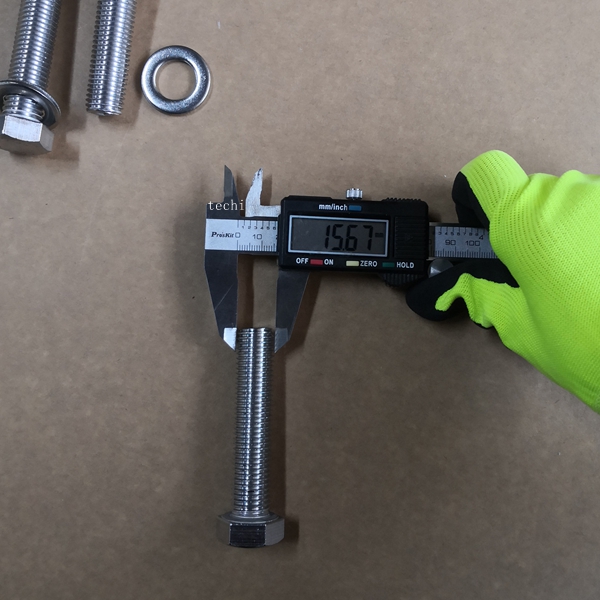

Strut Hex Head Bolt – Silver Galvanized M16*74mm measurement and dimension :
