U bolt clamp 26mm

Standard duty U bolt exhaust clamp designed for secure joining of exhaust pipes and components. Manufactured from mild steel with a protective cad/zinc coating for durability and corrosion resistance. Supplied with flanged locking nuts that lock against the clamp, not the thread, for added security.

U bolt clamp 26mm Material：

1.Stainless Steel: SS201, SS303, SS304, SS316, SS410, SS420 and So on

2.Steel: Carbon Steel,Alloy Steel,Spring Steel and So on

3.Brass:C36000 , C37700 ( HPb59), C38500( HPb58),C27200(CuZn37), C28000(CuZn40),Copper (99% Cu) and so on

4.Aluminum: Al6061, Al6063 etc

5.Free Cutting Steel: 1213, 12L14,1215 and so on

U bolt clamp 26mm Application：

Designed to suit exhaust pipes and components sized 51mm–55mm. Commonly used in exhaust repairs, custom fabrication, or when replacing muffler and pipe sections.

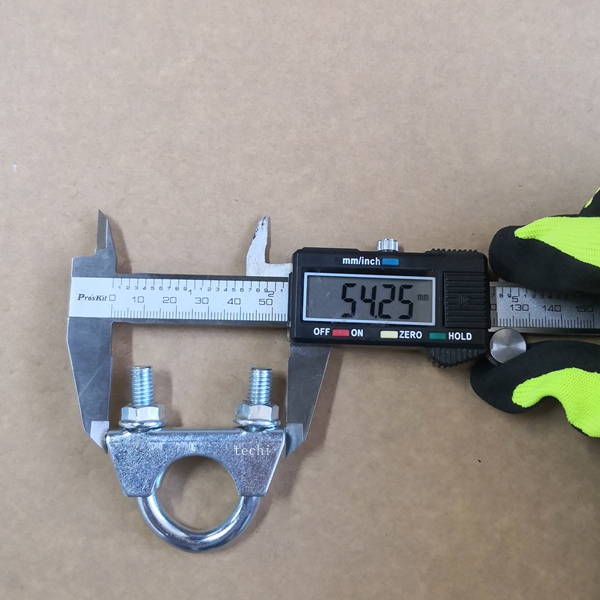

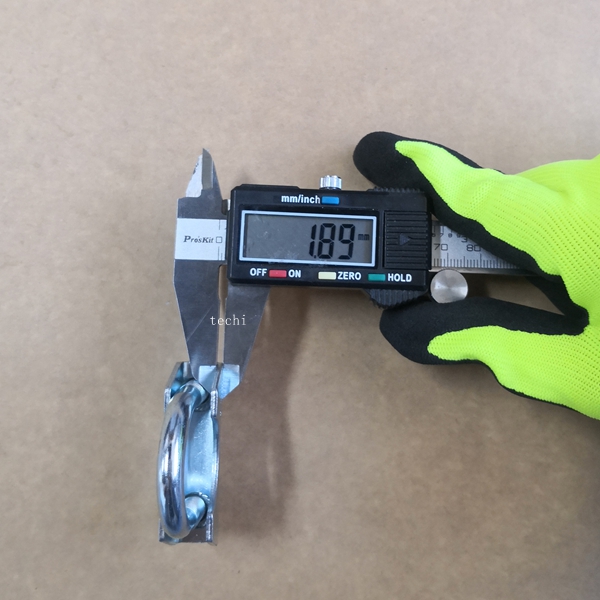

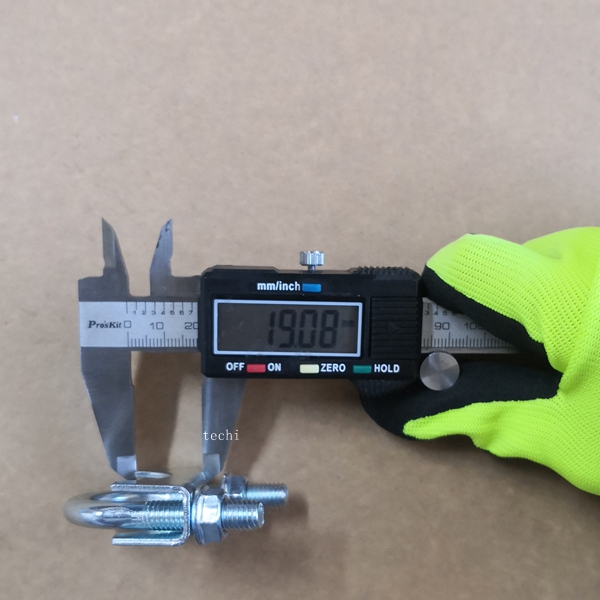

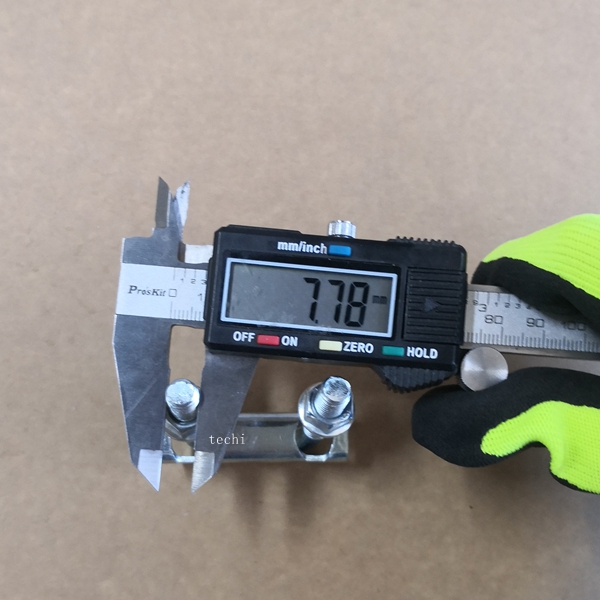

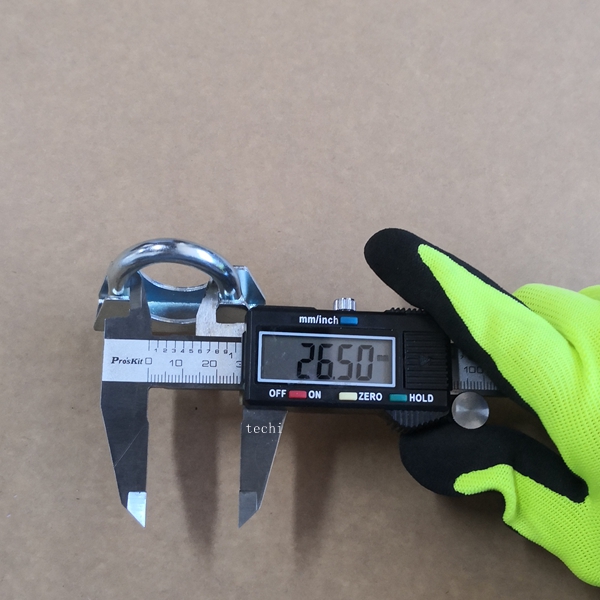

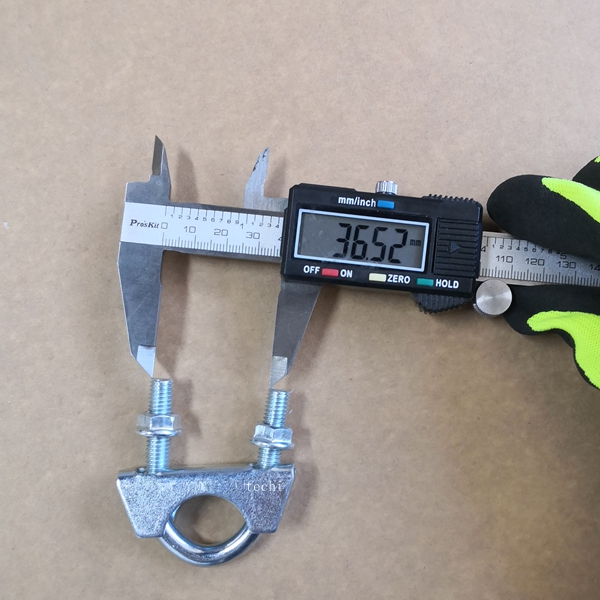

U bolt clamp 26mm dimension and size:

size	H	H₁+0.50	R	L±0.10	L₁	h
25	50	21	R12.5	33	50	16
28	55	21	R14	36	53	17.5
32	61	26	R16	40	57	19
35	63	26	R17.5	43	60	20
36	63	26	R18	44	60	24
38	65	26	R19	46	63	22
42	69	26	R21	50	67	23.5
45	70	26	R22.5	53	70	24
48	73	26	R24	56	73	25
51	76	26	R25.5	59	75.5	26
54	78	26	R27	62	79	27.5
57	82	26	R28.5	65	82	29
60	85	26	R30	68	85.5	30
64	88	26	R32	72	89	31.5
67	91	26	R33.5	75	92	33
70	95	26	R35	78	95	34.5
73	98	26	R36.5	81	97.5	36
76	100	26	R38	84	101	37
83	107	26	R41.5	91	108	40
89	111	26	R44.5	97	114	42
95	118	26	R47.5	103	120	44
102	130	26	R51	110	127	46
