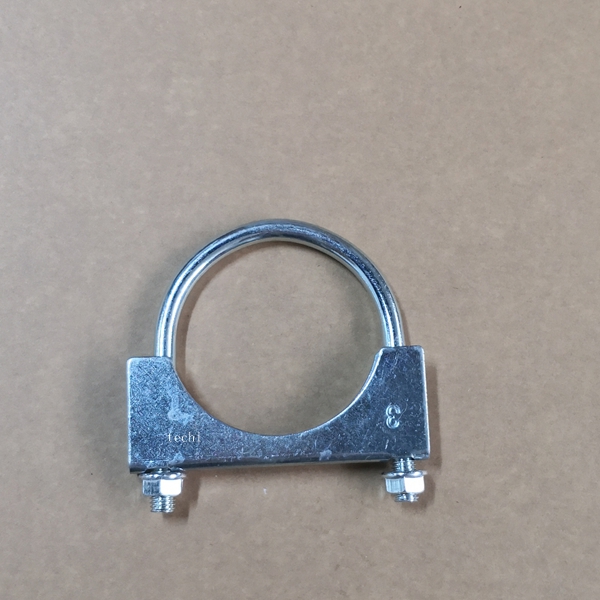

U-bolt exhaust clamp 79mm
U-Bolt Exhaust Clamp is a specialized fastening component engineered for automotive and industrial exhaust system applications. Its core U-shaped bolt structure, paired with a reinforced pressure plate and high-tensile nuts, delivers uniform clamping force to secure exhaust pipes, mufflers, or tailpipes—effectively preventing leaks caused by vibration or thermal expansion.
U-bolt exhaust clamp 79mm material:
The clamp is constructed from hot-dip galvanized carbon steel as standard, with an optional upgrade to 304 stainless steel for enhanced durability.

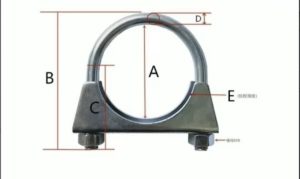

U-bolt exhaust clamp 79mm dimension and size:
| size | A（mm） | B（mm） | C（mm） | D（mm） | E（mm） |
| 24mm | 24 | 52 | 24 | 8 | 2 |
| 25mm | 25 | 53 | 24 | 8 | 2 |
| 28mm | 28 | 55 | 28 | 8 | 2 |
| 32mm | 32 | 60 | 31 | 8 | 2 |
| 35mm | 35 | 63 | 34 | 8 | 2 |
| 38mm | 38 | 66 | 38 | 8 | 2 |
| 42mm | 42 | 70 | 41 | 8 | 2 |
| 45mm | 45 | 73 | 45 | 8 | 2 |
| 48mm | 48 | 76 | 48 | 8 | 2 |
| 51mm | 51 | 78 | 50 | 8 | 2 |
| 54mm | 54 | 82 | 53 | 8 | 2 |
| 57mm | 57 | 85 | 57 | 8 | 2 |
| 60mm | 60 | 88 | 60 | 8 | 2 |
| 64mm | 64 | 92 | 63 | 8 | 2 |
| 67mm | 67 | 95 | 67 | 8 | 2 |
| 70mm | 70 | 98 | 70 | 8 | 2 |
| 73mm | 73 | 100 | 72 | 8 | 2 |
| 76mm | 76 | 104 | 75 | 8 | 2 |
| 83mm | 83 | 111 | 83 | 8 | 2 |
| 89mm | 89 | 116 | 88 | 8 | 2 |
| 95mm | 95 | 122 | 95 | 8 | 2 |
| 102mm | 102 | 130 | 102 | 8 | 2 |

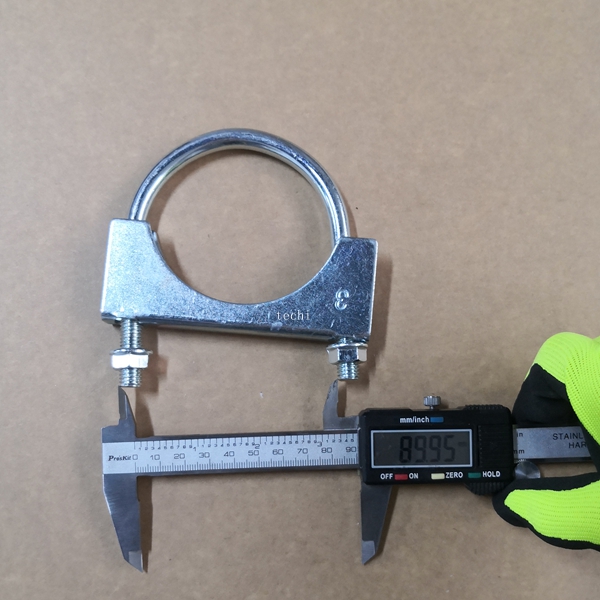

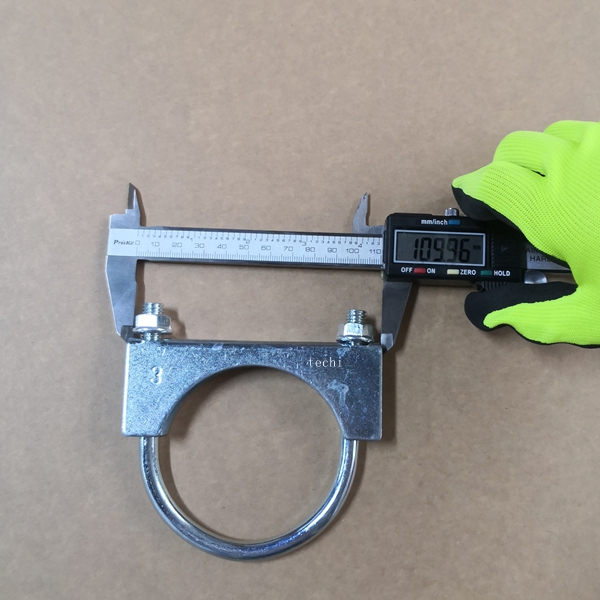

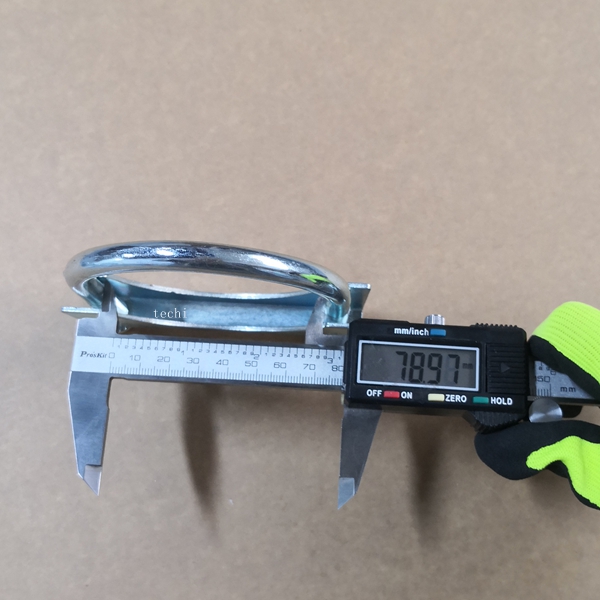

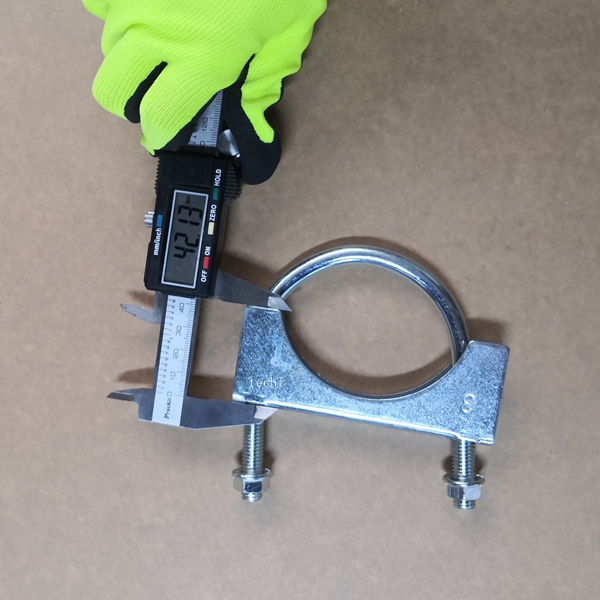

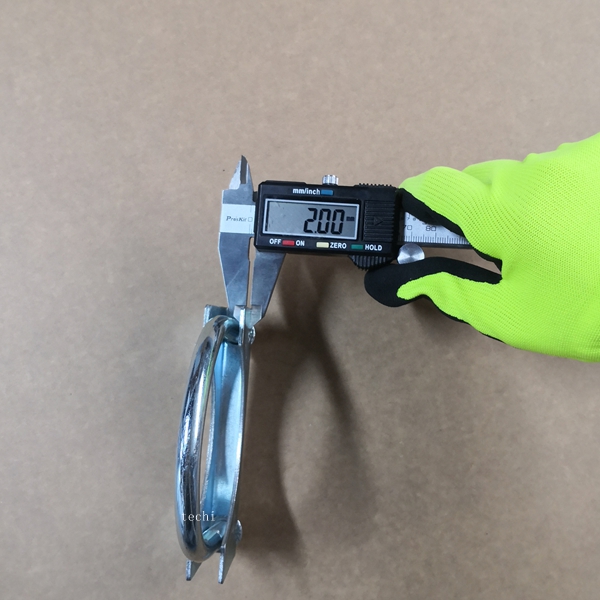

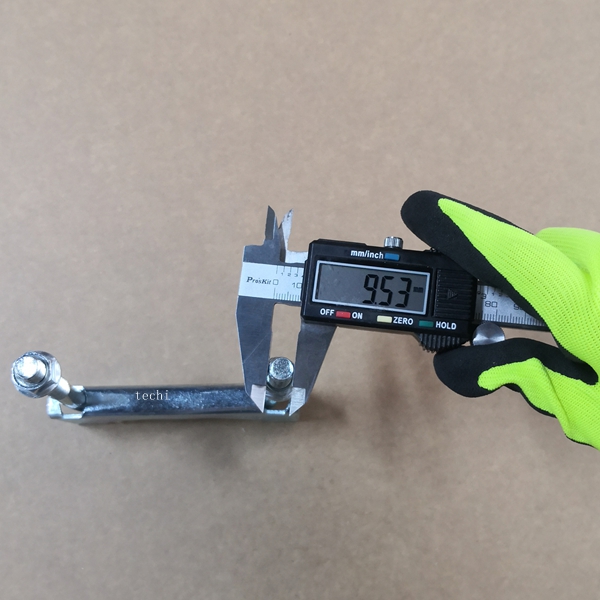

U-bolt exhaust clamp 79mm measurement and dimension :
