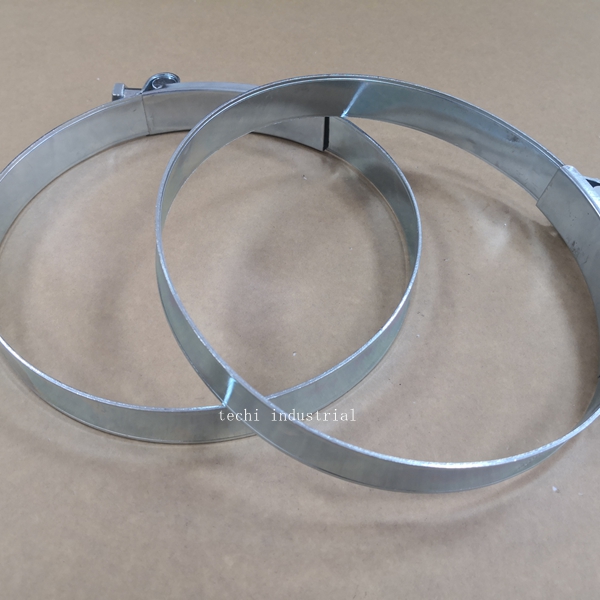

W1 full-steel galvanized hydraulic hose clamp 188-200mm
The W1 Steel Galvanized Bolt Hydraulic Heavy Duty Hose Clamp is a high-performance fastening solution engineered for securing large-diameter, thick-walled hydraulic hoses in heavy-duty industrial, construction, and agricultural machinery applications. With a clamping range of 188–200mm, it delivers exceptional clamping force, vibration resistance, and corrosion protection, ensuring leak-free connections even under extreme pressure and harsh operating conditions.
W1 full-steel galvanized hydraulic hose clamp 188-200mm Application:
To auto pipe , motor pipe , water pipe , cooling pipe , gas pipe ect.
W1 full-steel galvanized hydraulic hose clamp 188-200mm size :
| Size | W1 | W2,W4,W5 | Screw |
| Diameter (mm) | Thickness X Width(mm) | Thickness X Width(mm) | |
| 17-19 | 0.6×18 | 0.6×18 | M5X40 |
| 20-22 | |||
| 23-25 | |||
| 26-28 | |||
| 29-31 | 0.8×20 | 0.6×20 | M6X50 |
| 32-35 | |||
| 36-39 | |||
| 40-43 | |||
| 44-47 | 1.2×22 | 0.8×22 | M6X55 |
| 48-51 | |||
| 52-55 | |||
| 56-59 | |||
| 60-63 | |||
| 64-67 | M8X60 | ||
| 68-73 | 1.5×24 | 0.8×24 | |
| 74-79 | |||
| 80-85 | |||
| 86-91 | |||
| 92-97 | |||
| 98-103 | |||
| 104-112 | M8X70 | ||
| 113-121 | |||
| 122-130 | |||
| 131-139 | 1.7×26 | 1.0×26 | M10X85 |
| 140-148 | |||
| 149-161 | |||
| 162-174 | M10X105 | ||
| 175-187 | |||
| 188-200 | |||
| 201-213 | |||
| 214-226 | |||
| 227-239 | |||
| 240-252 |

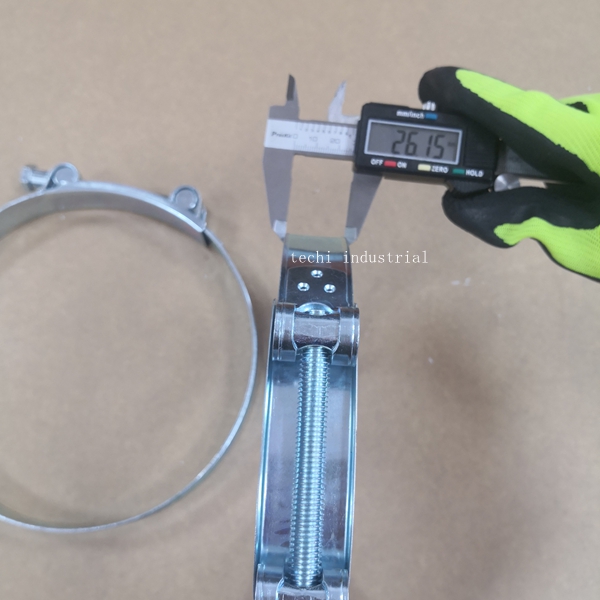

W1 Steel Galvanized Bolt Hydraulic Heavy Duty Hose Clamp 188-200mm measurement and dimension :
