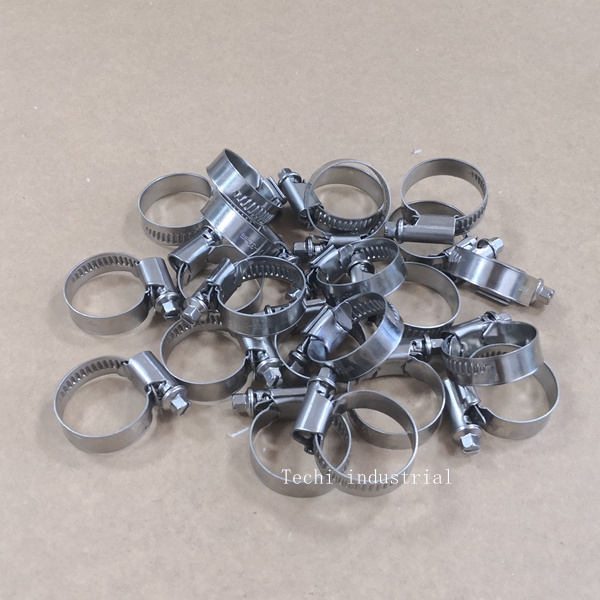

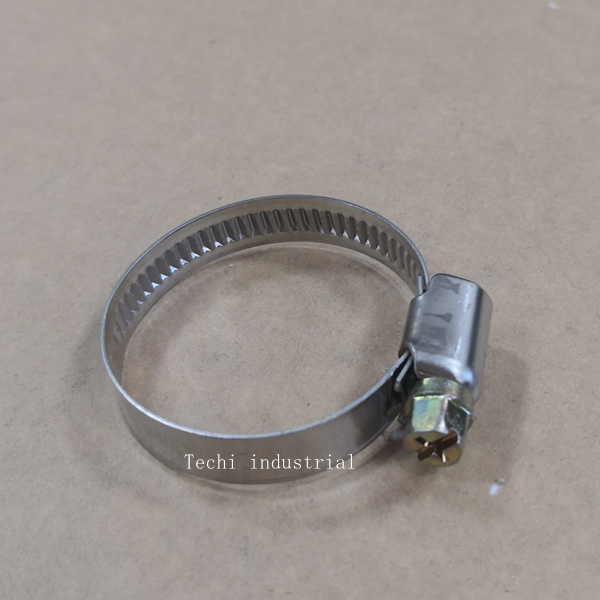

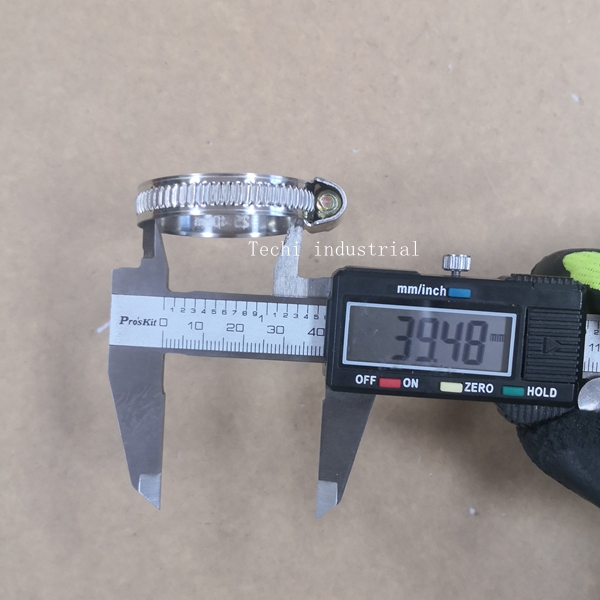

Worm drive Germany type hose clamp 39mm

Comply with DIN3017 Germany standard with Non-Perforated band(Worm Gear Clamp), the perfect smooth of band’s brim, no burr on surface to damage the hose when installation. The design of convex-concave band is having more stable quality in heat or cold temperature.

Worm drive Germany type hose clamp 39mm material:

W1:

all of the housing, screw and band are silvery or golden color galvanized iron;

W2:

screw is galvanized iron, other parts are 200 or 300 series stainless steel;

W4:

all of the Housing,Screw,Band are SUS200 or SUS304 series stainless steel;

W5:

all of the Housing,Screw,Band are SUS316 stainless steel

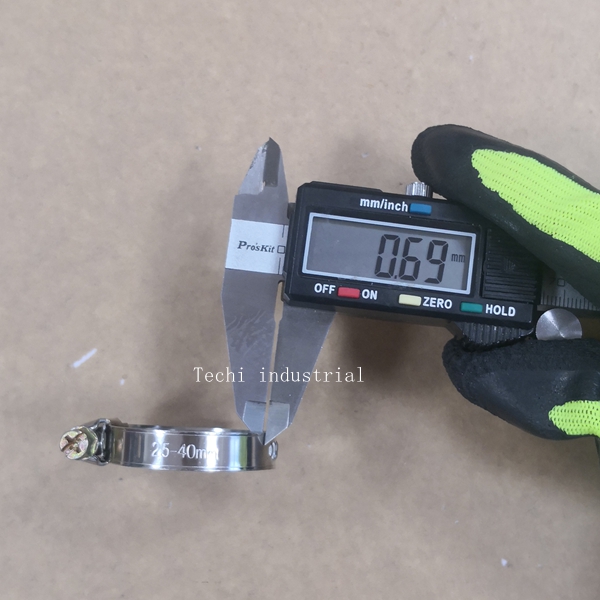

Worm drive Germany type hose clamp 39mm Size and Drawing:

Product	Diameter Range			Packing/CTN
Product	mm	Inches	Band Thickness	pcs	kgs
Hose clamp 8-12mm	8-12	5/16″-1/2″	0.60	2,000	14.50
Hose clamp 8-16mm	8-16	5/16″-5/8″	0.60	2,000	15.70
Hose clamp 12-20mm	12-20	1/2″-3/4″	0.60	2,000	16.70
Hose clamp 12-22mm	12-22	1/2″-7/8″	0.60	2,000	17.80
Hose clamp 16-25mm	16-25	5/8″-1″	0.60	2,000	18.00
Hose clamp 16-27mm	16-27	5/8″-1 1/16″	0.60	2,000	19.20
Hose clamp 20-32mm	20-32	3/4″-1 1/4″	0.60	2,000	18.10
Hose clamp 25-40mm	25-40	1″-1 5/8″	0.60	2,000	19.10
Hose clamp 35-50mm	35-50	1 1/4″-2″	0.60	1,000	21.80
Hose clamp 40-60mm	40-60	1 5/8″-2 3/8″	0.60	1,000	24.10
Hose clamp 50-70mm	50-70	2″-2 3/4″	0.60	1,000	27.50
Hose clamp 60-80mm	60-80	2 3/8″-3 1/8″	0.60	500	16.50
Hose clamp 70-90mm	70-90	2 3/4″-3 1/2″	0.60	500	17.50
Hose clamp 80-100mm	80-100	3 1/8″-4″	0.60	500	18.10
Hose clamp 90-110mm	90-110	3 1/2″-4 3/8″	0.60	500	20.10
Hose clamp 100-120mm	100-120	4″-4 3/4″	0.60	500	20.50
Hose clamp 110-130mm	110-130	4 3/8″-5 1/8″	0.60	250	11.20
Hose clamp 120-140mm	120-140	4 3/4″-5 1/2″	0.60	250	12.00
Hose clamp 130-150mm	130-150	5 1/8″-5 7/8″	0.60	250	12.90
Hose clamp 140-160mm	140-160	5 1/2″-6 1/4″	0.60	250	12.50
